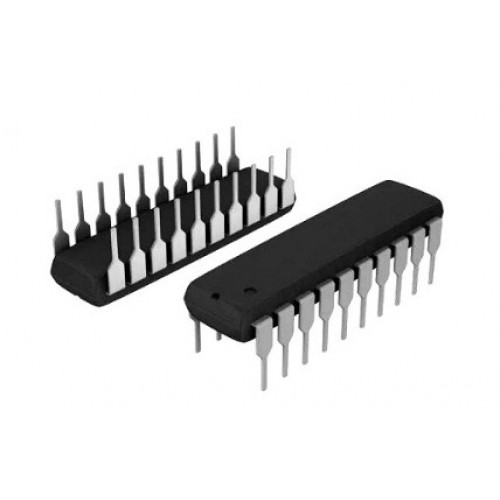

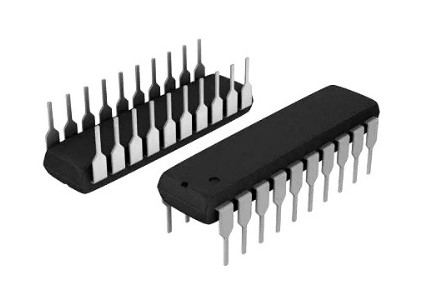

74HC273 Octal D-Type Flip-Flop With Reset DIP IC

74HC273 Octal D-Type Flip-Flop with Reset DIP IC

74HC273 Flip-Flop with Reset, 8 D inputs, common clock, and asynchronous reset.

The 74HC273 Octal D-Type Flip-Flop with Reset DIP IC is a reliable component in digital circuits. It features eight positive-edge triggered flip-flops that latch data on the rising edge of the clock. With a common clock and asynchronous master reset, this IC simplifies your design process. Its high-speed CMOS technology ensures efficient performance, making it suitable for various applications.

This 74HC273 Octal D-Type Flip-Flop with Reset DIP IC operates within a supply voltage range of 2V to 6V and is compatible with both CMOS and TTL input types. It is ideal for data latching, temporary storage, and signal synchronization in digital systems. The DIP-20 package allows for easy integration into breadboards and circuits.

Incorporate the 74HC273 Octal D-Type Flip-Flop with Reset DIP IC into your projects for effective data management and control. Whether you are developing registers or buffers, this component provides the reliability and performance needed for modern electronics.

Explore the world of 7400 Series IC's at DNA. Find the 74HC273 Octal D-Type Flip-Flop with Reset and other essential components in this category. Check other 7400 Series IC's that we have in stock.

Are you looking for specific electronic components? At DNA, we cater to Indian electronics buyers. If you can't find certain parts, we can import them for you. We support both retail and bulk orders. Check out related items like Power Supply, Humidity & Temperature Sensor, IGBT, Microcontroller, SMPS, and Transistor. Contact Us.

Features of 74HC273 Octal D-Type Flip-Flop with Reset DIP IC

• Eight D-type flip-flops with common clock and reset
• Positive-edge triggered clock input
• Asynchronous master reset
• High-speed CMOS technology
• DIP-20 package, breadboard friendly

Specification of 74HC273 Octal D-Type Flip-Flop with Reset DIP IC

• Logic Family: 74HC
• Number of Flip-Flops: 8
• Input Type: CMOS/TTL compatible
• Supply Voltage: 2V to 6V
• Typical Operating Voltage: 5V
• Output Current: ±6 mA
• Package: DIP-20

Applications of 74HC273 Octal D-Type Flip-Flop with Reset DIP IC

• Data latching and temporary storage
• Registers and buffers in digital systems
• Signal synchronization
• LED or segment display control

Related Links for 74HC273 Octal D-Type Flip-Flop with Reset DIP IC

• Other Products from 7400 Series IC's Category

Package Includes

• 1 X 74HC273 Octal D-Type Flip-Flop with Reset DIP IC
