74LS266 Quad 2 Input Exclusive NOR Gate DIP IC

74LS266 Quad 2 Input Exclusive NOR Gate DIP IC

74LS266 XNOR Gate IC with 4 gates, open-collector outputs, and TTL compatibility.

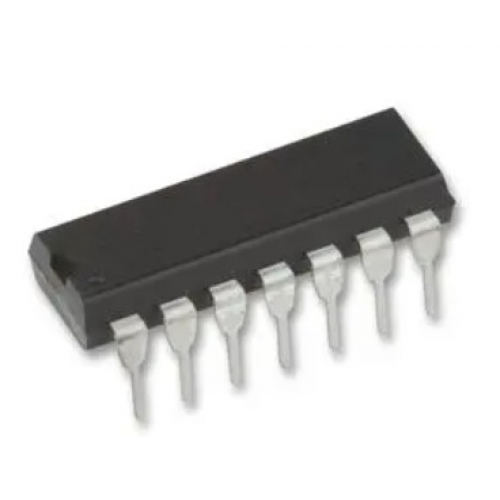

The 74LS266 Quad 2 Input Exclusive NOR Gate DIP IC is designed for efficient digital logic applications. This IC features four XNOR gates, ideal for parity functions and logic comparisons. With open-collector outputs, it supports wired-AND configurations, making it versatile for various circuits. Built with Low Power Schottky technology, it ensures fast switching speeds while minimizing power consumption. Its standard DIP-14 package allows easy integration into TTL-level logic circuits.

In educational and prototyping environments, the 74LS266 Quad 2 Input Exclusive NOR Gate DIP IC serves as an essential component for digital logic comparators and control systems. Its high-speed operation and compatibility with bus systems make it a reliable choice for digital signal processing applications. Whether you are designing a new circuit or upgrading an existing setup, this IC provides the performance needed for modern electronic projects.

Explore the capabilities of the 74LS266 Quad 2 Input Exclusive NOR Gate DIP IC for your next project. It is suitable for applications requiring logical operations and is widely used in both commercial and educational settings. Find out how this IC can enhance your circuit designs today.

Discover the reliability of the 7400 Series IC's at DNA. The 74LS266 by a trusted manufacturer stands as a key component in digital electronics. Explore our full range of '7400 Series IC's' to find the right solutions for your needs. Check other '7400 Series IC's' that we have in stock.

If you need specific electronic components, reach out to us at DNA. We can help you find parts like MOSFETs, crystals, digital ICs, microcontrollers, sensors, and Hongfa relays. If a part is unavailable, we can import it for you. Contact Us.

Features of 74LS266 Quad 2 Input Exclusive NOR Gate DIP IC

• Quad 2-input Exclusive-NOR gates (4 gates per IC)
• Open-collector outputs for wired-AND capability
• TTL-compatible logic levels
• High-speed operation with low power consumption
• Standard 14-pin Dual Inline Package (DIP)
• Schottky-clamped inputs for improved performance
• Suitable for direct connection to bus lines

Specification of 74LS266 Quad 2 Input Exclusive NOR Gate DIP IC

• Logic Function: XNOR (Exclusive NOR)
• No. of Inputs: 2 Inputs
• Logic Case Style: DIP
• Product Range: 74LS266
• Supply Voltage Min: 4.75V
• Schmitt Trigger Input: Without Schmitt Trigger Input
• No. of Pins: 14 Pins

Applications of 74LS266 Quad 2 Input Exclusive NOR Gate DIP IC

• Digital logic comparators
• Logic-level conversion with pull-up configuration
• Wired-AND bus systems
• Control systems and digital signal processing
• Educational and prototyping circuits

Package Includes

• 1 X 74LS266 Quad 2 Input Exclusive NOR Gate DIP IC
