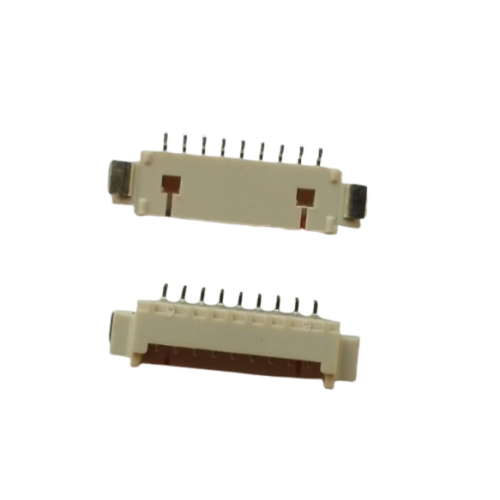

9 Pin 1.25 mm JST Side Entry SMT Connector

9 Pin 1.25 mm JST Side Entry SMT Connector

The 9 Pin 1.25 mm JST Side Entry SMT Connector is a compact and reliable surface mount connector designed for high-density electronic designs. With a 1.25 mm pitch and side-entry form, it is ideal for board-to-cable connections in devices where space-saving is essential. Commonly used in consumer electronics, wearables, and IoT applications.

DNA Solutions, Nashik offers a wide variety of connectors for all your electronic project needs. Explore more at Connectors Collection.

Features of 9 Pin 1.25 mm JST Side Entry SMT Connector

• 1.25 mm pitch compact design

• Surface mount technology for PCB integration

• Side-entry (horizontal) mounting

• Reliable connection with JST cable assemblies

• Ideal for compact and lightweight devices

Specifications of 9 Pin 1.25 mm JST Side Entry SMT Connector

• Pin Count: 9

• Pitch: 1.25 mm

• Mounting Type: Surface Mount (SMT)

• Orientation: Side Entry

• Connector Series: JST Compatible

Applications of 9 Pin 1.25 mm JST Side Entry SMT Connector

• Consumer electronics and wearables

• Battery and signal interface in IoT devices

• Portable gadgets and instruments

• Compact embedded system designs

Package Includes

      1 x 9 Pin 1.25 mm JST Side Entry SMT Connector
