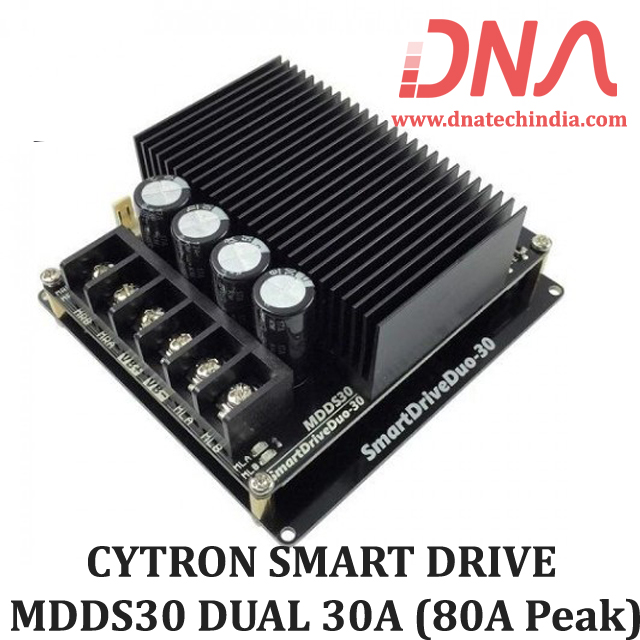

CYTRON SMART DRIVE MDDS30 DUAL 30A (80A Peak)

  • Stock: Out Of Stock
  • Brand: Cytron
  • SKU: 2269 | DAC050
  • Rs. 5,490.00 (inc GST)
    Rs.4,652.54 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

CYTRON SMART DRIVE MDDS30 DUAL 30A (80A Peak)

30Amp 7V-35V SmartDrive DC Motor Driver (2 Channels)

DC brushed motor is widely used for many different applications; from conveyor, AGV (Automated Guide Vehicle), mobile robot and combat robot. One of the reasons is the ease to use it, just connect the two terminals of motor to power respectively, it will start rotating, so simple. Yet, to control the speed and direction from a controller, a motor driver is needed.
This is SmartDriveDuo-30, with the ease of accepting RC (Radio Control) signal to drive two DC brushed motors in independent or mix mode, it is perfect for combat robot. Not to forget it supports up to 80Amps of peak current (1 second) and 30Amps continuous current at each channel, best for medium power motor.And with that, it is smart enough to accept control signal from:
  • RC (Radio Control)
  • PWM of microcontroller
  • Analog voltage of Potentiometer/Variable Resistor/Joystick
  • UART data of microcontroller
The operation mode is determined by the configuration on DIP switch, please do refer the User's Manual for detailed settings. Not to forget, to make it RC receiver friendly, we have added 2x3 header pin, with just 2 x RC extension cable(which is included), the wiring is done, it takes only 2 minutes! And by default, MDDS30 is configured in RC controller, Mixed control mode, even easier!
With MDDS30's wide operating voltage range, you can now series up two SLA battery to power your motor as it supports up to 35VDC input. And you only require one power input to operate the motor and driver. Don't worry, 3-cell and 6-cell Li-po battery are within the operating voltage :) Hey! It also comes with battery low voltage warning, what else do you need?
Which motor is good to be driven by MDDS30? As long as the motor:
  • Is DC Brush motor (Two Terminals)
  • Operating voltage from 7V to

We have Various sizes of Cytron. Check out our complete collection of Cytron.


If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features:

  • Bi-directional control for dual brushed DC motor.
  • Support motor voltage from 7V to 35VDC.
  • Maximum current up to 80A peak (1 second), 30A continuous, each channel.
  • On board MOSFETs are switched at 18 KHz for quiet operation.
  • Regenerative Braking.
  • Analog voltage from potentiometer/variable resistor/joystick
  • PWM and DIR (sign-magnitude and locked-antiphase) from microcontroller
  • Serial Simplified or Serial Packetized from microcontroller
  • GROVE compatible connectors for control input.
  • RC (Radio Control) friendly connectors.
  • On board push buttons for fast test and manual operation.
  • On board LED indicators for Error, RUN, Over current, motor output, for each channel.
  • NO POLARITY PROTECTION FOR V MOTOR.
  • Dimension: 81.28mm(W) x 101.60mm (L) x 42mm (H)

Packing List:

  • 1 x MDDS30

  • 2 x Grove 4-pin Buckled, 20cm Cable
  • 2 x 2561 3-way connector extension wire
