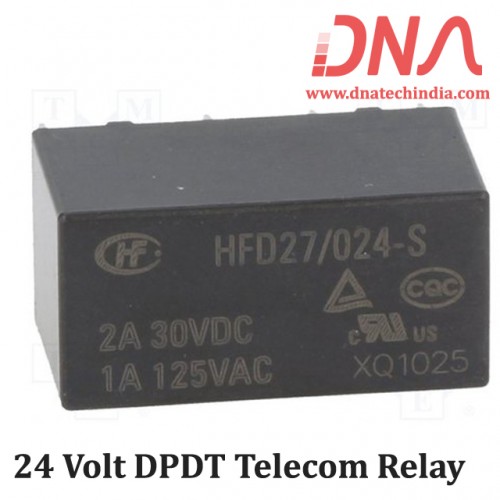

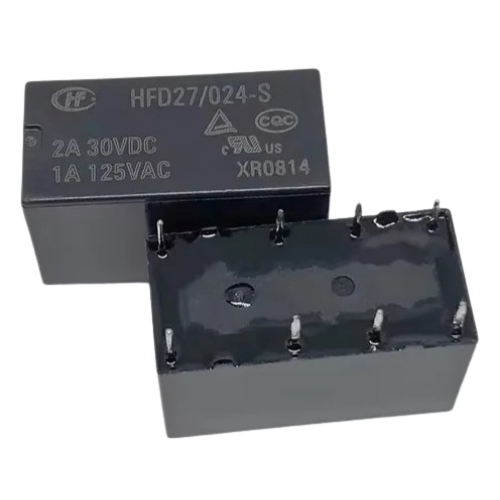

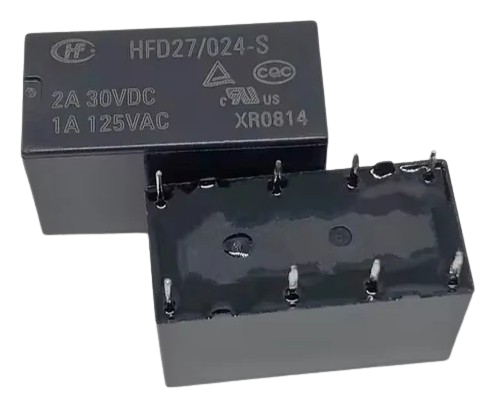

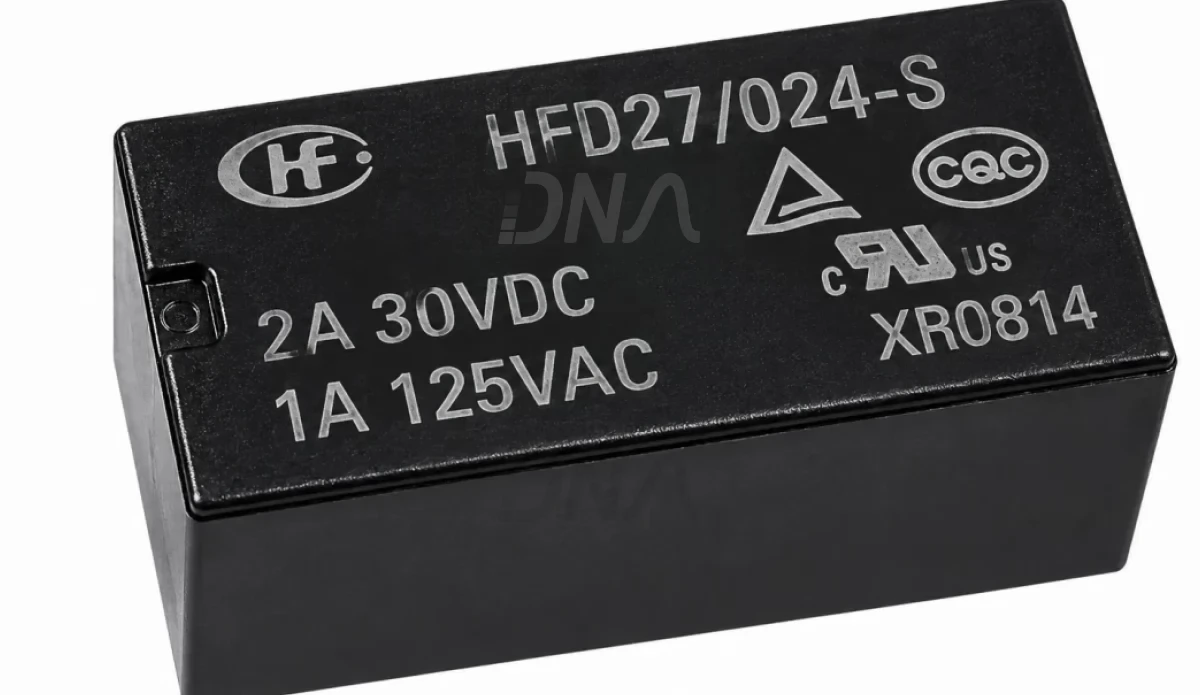

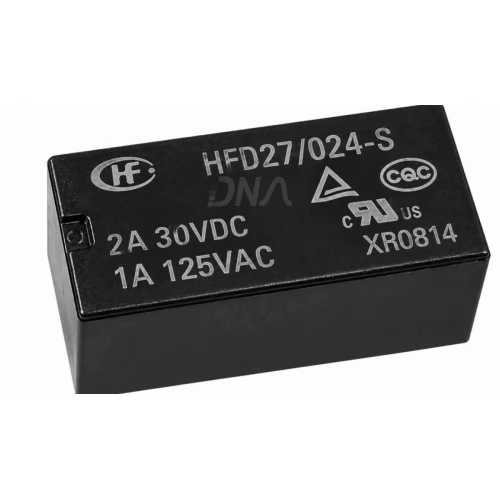

Hongfa HFD27/024-S 24 VDC Subminiature DIP Signal Relay

  • Stock: 10

    Availability: InStock priceValidUntil: 2026-12-18

  • Brand: Hongfa
  • SKU: 2741 | DAE278

Availability: InStock priceValidUntil: 2026-12-18

  • Rs. 81.53 (inc GST)
    Rs.69.09 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Hongfa HFD27/024-S 24 VDC Subminiature DIP Signal Relay

HFD27/024-S is a 24 VDC subminiature DIP relay with two changeover contact sets, bifurcated contacts and an epoxy-sealed body.

The Hongfa HFD27/024-S is a subminiature DIP relay for electromechanical switching. Its 24 VDC coil operates two changeover contact sets, giving a circuit two switching paths in a compact PCB-mounted part.
Bifurcated AgNi contacts with gold plating support signal switching. The epoxy-sealed construction suits automatic-wave soldering and cleaning, while through-hole mounting supports PCB assembly. The relay also fits a 16-pin IC socket.
Use this two changeover contact relay in telecommunications and instrumentation equipment. Its compact format combines switching and PCB integration in one component.
DNA supplies Hongfa Relay products for electronics design, repair and production needs. Browse Hongfa relay options and check availability for your project. Check other Hongfa Relay that we have in stock
If you cannot find the part you need, contact DNA for import support and retail or bulk supply. We can also help you find items such as Connectors, Power Supply units and DC to DC Converter ICs. Contact Us

Features of Hongfa HFD27/024-S 24 VDC Subminiature DIP Signal Relay

  • Two changeover contact sets provide flexible circuit switching
  • Bifurcated AgNi contacts with gold plating support signal switching
  • Epoxy-sealed construction suits automatic-wave soldering and cleaning
  • Through-hole DIP format supports PCB mounting
  • Compatible with a 16-pin IC socket

Specifications of Hongfa HFD27/024-S 24 VDC Subminiature DIP Signal Relay

  • Rated coil voltage: 24 VDC
  • Coil type and power: Sensitive type, approximately 200 mW
  • Contact arrangement: 2 Form C (2 changeover sets)
  • Contact rating: 2 A at 30 VDC and 1 A at 125 VAC (resistive load)
  • Maximum switching voltage: 250 VAC / 120 VDC
  • Maximum switching current and power: 2 A
  • Ambient temperature: -40 °C to 85 °C
  • Body dimensions: 20.2 × 11.5 × 10 mm

Applications of Hongfa HFD27/024-S 24 VDC Subminiature DIP Signal Relay

  • Telecommunications
  • Instrumentation

Related Links for Hongfa HFD27/024-S 24 VDC Subminiature DIP Signal Relay

Package Includes

  • 1 X Hongfa HFD27/024-S 24 VDC Subminiature DIP Signal Relay
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
