USR-TCP232-200 RS232 to TCP/IP Ethernet Converter

  • Stock: Out Of Stock
  • SKU: 0406 | IOT003
  • Rs. 4,711.74 (inc GST)
    Rs.3,993.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

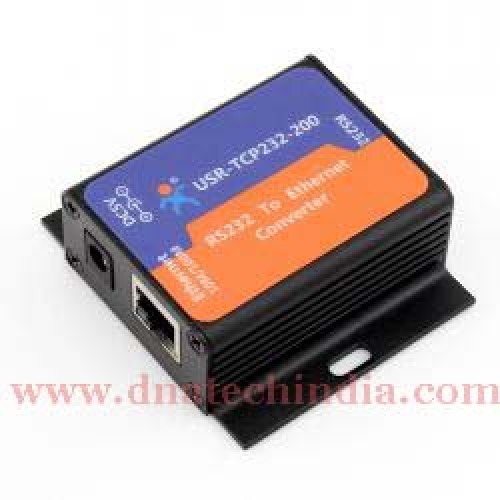

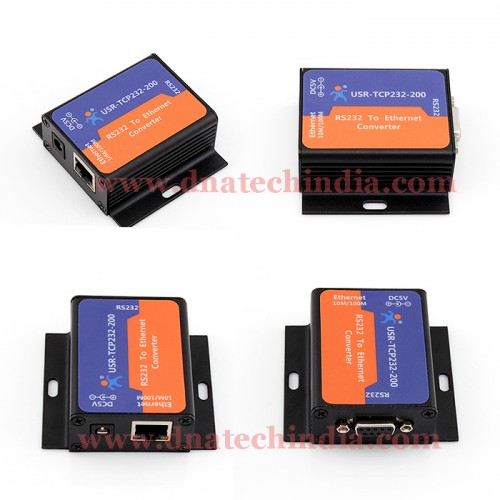

USR-TCP232-200 Serial RS232 to TCP/IP Ethernet Converter

Want to interface your microcontroller based product/project to Ethernet without much hassle? Well then this is the perfect module for you.

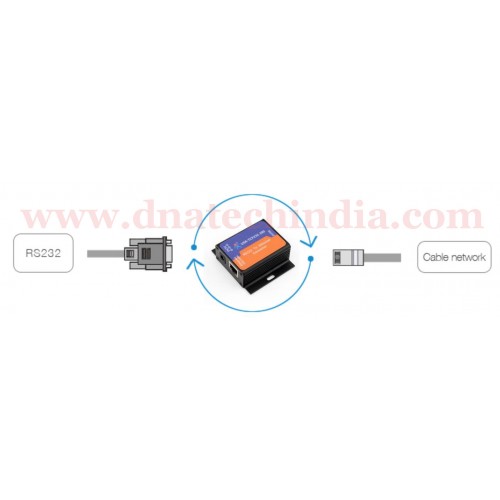

If you have an existing product with RS232 interface then just used this Serial RS232 to TCP/IP Ethernet Converter (Serial server) no need to change your hardware or even your code just connect your hardware to this module and our Serial RS232 to TCP/IP Ethernet Converter will do the rest.

This module is suitable for connecting serial industrial automation equipment such as PLC, sensors,meters, motors, drives, bar code readers and displays and design. Serial server module is widely used in attendance, access control systems, Canteen machines, POS systems, building control, fire control, the banking system, engine room monitoring, UPS monitoring, power, oil, environmental monitoring, industrial applications and other areas.

This module is suitable for internal LAN users in a simple to use applications.

 USR-TCP232-200 Ethernet to serial converter is an Equipment for convert TCP or UDP socket data to RS232. Easy to use, low price, low power, 32 bits ARM on board, high speed , high Stability.

This is a multi-functional embedded Ethernet to serial data conversion device that integrates a TCP/IP protocol stack, the user can easily use it to network functionality of embedded devices, upgrade the existing serial devices into a network function, saving human and material resources and development time, make the product faster to market, enhance their competitiveness.

There is 10/100M auto detected RJ45 interface, RS232 baund rate up to 230.4Kbps, can work at TCP Server, TCP Client, UDP client and UDP server mode, setup easily via software.

Features of USR-TCP232-200

  • 10/100M auto detect interface;
  • supports AUTO MDI/MDIX, Can use a crossover cable or parallel cable connection;
  • Work mode TCP Server, TCP Client, UDP, UDP Server;
  • Working model related parameters can be set via a serial port or network;
  • 5 V RS232 level ;
  • Virtual serial port supported;
  • Unique heartbeat package mechanism to ensure that the connection is reliable
  • Under UDP mode, Packet Broadcast is prohibited, with stronger anti-interference ability; across the gateway, across switches, routers;
  • Can work in LAN, also can work on the Internet (external network);
  • Transmission distance: RS232 - 15 meters;
  • 32 bits ARM CPU inside;
  • LAN : 10/100Mbps; protect: Built-2KV isolated electromagnetic;
  • Serial port baud rate: from 300 to 230400bps can be set up, and up to 3 MBPS;
  • Network protocol: ETHERNET ARP IP UDP TCP ICMP;
  • Software tool: configuration software, TCP/UDP test soft, RS232 debug soft;
  • Configuration method: RS232 or via Ethernet, free software available;

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
