Mornsun LS05-13B12R3 5 W AC/DC Converter Module

  • Stock: 40

    Availability: InStock priceValidUntil: 2026-12-15

  • Brand: Mornsun
  • SKU: 2578 | DAC976

Availability: InStock priceValidUntil: 2026-12-15

  • Rs. 174.04 (inc GST)
    Rs.147.49 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Mornsun LS05-13B12R3 5 W AC/DC Converter Module

Mornsun LS05-13B12R3 AC/DC converter module with 12 V, 420 mA output, 5 W power and 85–305 VAC or 70–430 VDC input.

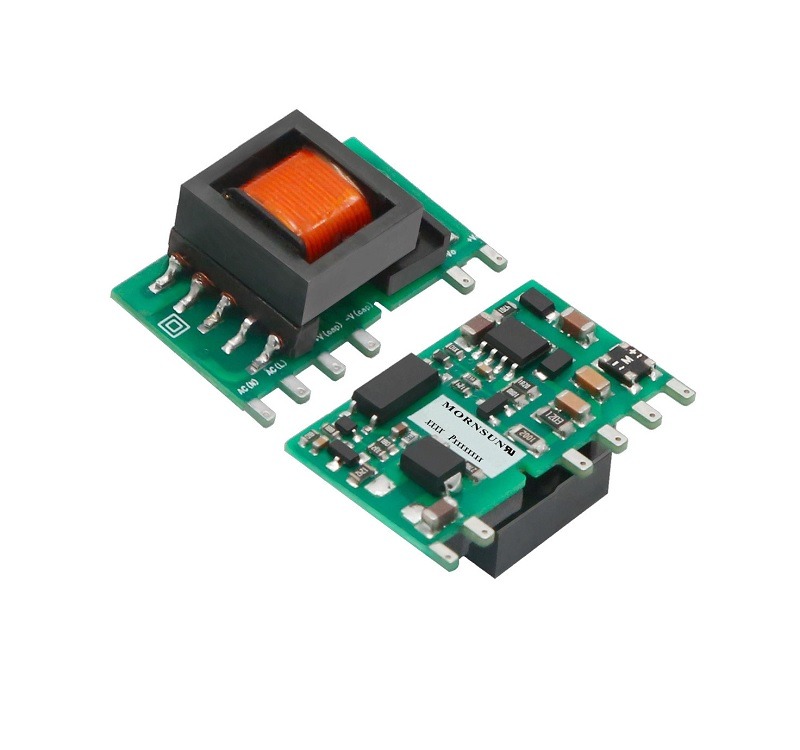

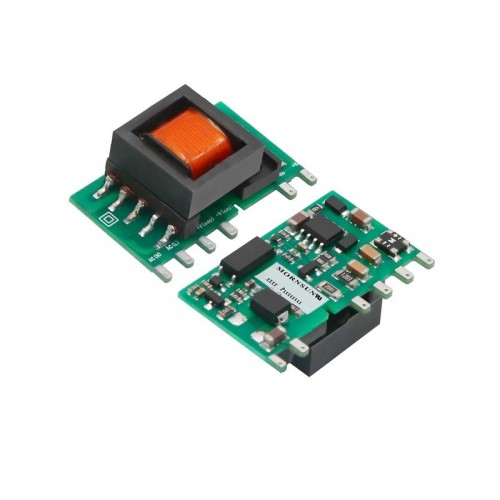

The Mornsun LS05-13B12R3 is an open-frame AC/DC converter module. It delivers a nominal 12 V DC output at up to 420 mA, with a 5 W output rating. Its wide AC and DC input range suits equipment that needs a stable low-voltage supply from different input sources.
Reinforced isolation separates the input and output. Short-circuit protection uses hiccup operation and self-recovers when the fault clears. Over-current protection also self-recovers. The module uses a typical 0.10 W at no load when supplied with 230 VAC, which can help limit standby power use.
This 12 V AC/DC converter module supports industrial control, electric power equipment, instrumentation and smart home devices. Its integrated conversion and protection functions suit equipment that needs an isolated DC supply.
DNA offers Mornsun power modules for electronics and equipment needs. Explore the Mornsun SMPS range to find a supply for your design or replacement needs. Check other Mornsun SMPS that we have in stock
If you cannot find the part you need, contact DNA for import support. We support retail and bulk orders across India. You can also ask about related Microcontrollers, MOSFETs, Analog ICs, Diodes, Sensors and Capacitors. Contact Us

Features of Mornsun LS05-13B12R3 5 W AC/DC Converter Module

  • Accepts AC or DC input through the same terminals
  • Reinforced isolation separates input and output
  • Short-circuit protection uses hiccup operation and self-recovers
  • Over-current protection self-recovers
  • Open-frame construction for equipment integration

Specifications of Mornsun LS05-13B12R3 5 W AC/DC Converter Module

  • Rated output voltage: 12 V nominal at the load terminal after adding external circuits
  • Rated output current: 420 mA
  • Output power: 5 W
  • Input voltage range: 85–305 VAC or 70–430 VDC
  • Input frequency: 47–63 Hz for AC input
  • Operating temperature: −40°C to +85°C, with power derating above +55°C
  • Input-output electric strength: 3600 VAC minimum or 5000 VDC minimum for a 1-minute test, with leakage current below 5 mA
  • External electrolytic capacitors: required

Applications of Mornsun LS05-13B12R3 5 W AC/DC Converter Module

  • Industrial control
  • Electric power equipment
  • Instrumentation
  • Smart home devices

Related Links for Mornsun LS05-13B12R3 5 W AC/DC Converter Module

Package Includes

  • 1 X Mornsun LS05-13B12R3 5 W AC/DC Converter Module
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
