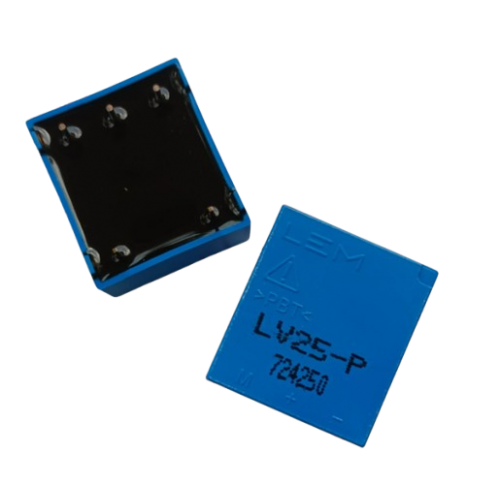

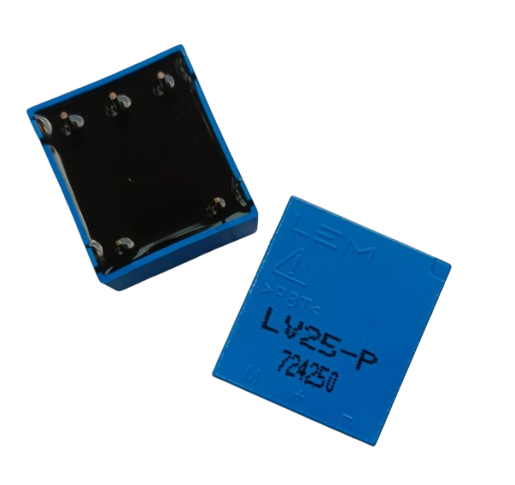

CURRENT TRANSDUCER TF LV25P

Current Transducer TF LV25P

TF LV25P Current Transducer for AC, DC, and pulsed currents with high accuracy and galvanic isolation.

The Current Transducer TF LV25P is designed for precise measurement of DC, AC, and pulsed currents. This Hall-effect based transducer ensures galvanic isolation between primary and secondary circuits, making it ideal for industrial automation and power electronics. Its compact design allows for easy PCB mounting, while its low power consumption enhances efficiency.

With a measuring range of ±(0.3 × IₚN) and a response time of less than 3 µs, the Current Transducer TF LV25P provides reliable data for applications such as motor drives, renewable energy systems, and medical equipment. The device operates effectively within a temperature range of -40°C to +85°C, ensuring durability in various environments.

Explore the benefits of the Current Transducer TF LV25P for monitoring and control in power supply and battery systems. Its high accuracy and low drift make it a preferred choice for engineers and technicians across India, ensuring optimal performance in demanding applications.

Discover the precision of Current and Voltage Sensors at DNA. The Current Transducer TF LV25P is perfect for your industrial needs. Explore our range and see other products in this category. Check other Current and Voltage Sensor that we have in stock.

If you are looking for more electronic components, DNA is here to help. We can assist you in finding parts like MOSFETs, Microcontrollers, SMPS, Sensors, Analog ICs, and Development Modules. If you can't find what you need, we can import it for you. Contact Us.

Features of Current Transducer TF LV25P

• Hall-effect based closed-loop current transducer
• High accuracy with low offset and low drift
• Galvanic isolation between primary and secondary circuits
• Wide frequency bandwidth for AC and pulsed current measurements
• Compact and lightweight design for easy PCB mounting
• Low power consumption

Specification of Current Transducer TF LV25P

• Primary Nominal Current (IₚN): 10 mA to 50 mA
• Measuring Range: ±(0.3 × IₚN)
• Output Signal: Proportional voltage output
• Supply Voltage (Vₙ): ±12V to ±15V
• Linearity Error: < 1%
• Response Time: < 3 µs
• Operating Temperature: -40°C to +85°C

Applications of Current Transducer TF LV25P

• Industrial automation and process control
• Power supply and battery monitoring
• Motor drive applications
• Renewable energy systems
• Medical and laboratory equipment

Package Includes

• 1 X Current Transducer TF LV25P
