Multi Coin Acceptor
- Stock: 2 InStock
- SKU: 0703 | DAC487
-
Rs.
1,877.38 (inc GST)
Rs.1,591.00 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.

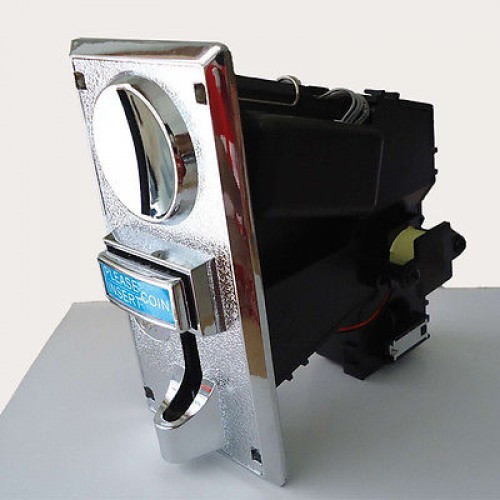

Multi Coin Acceptor
Want to detect which coin has been inserted? Well then this is the perfect coin selector for you.
This is a multi coin selector module. It can detect and give pulses for upto six different types of coins.
Features of Multi Coin Selector
Intelligent CPU software control, and high accuracy.
Self-programming without PC, and automatic self-test for problem
Accept different kinds of coins at the same time. Free to set up pulses' output.
Prevent not only electric shock but also electromagnetic interference.
Support multi coins with only 1 signal output.
Capable of accepting all worldwide Coins and Tokens
Specifications of Advanced CPU Multi Coin Selector
Coin diameter : 15mm-32mm
Atmospheric pressure : 86Kpa—106Kpa
Signal output : pulse
Coin thickness : 1.2mm-3.4mm
Accuracy rate of identification : 99.5%
Speed : ≤0.6s
Working voltage : DC +12V ±10%
Working humidity : ≤95%
Working current : 65mA ±5%
