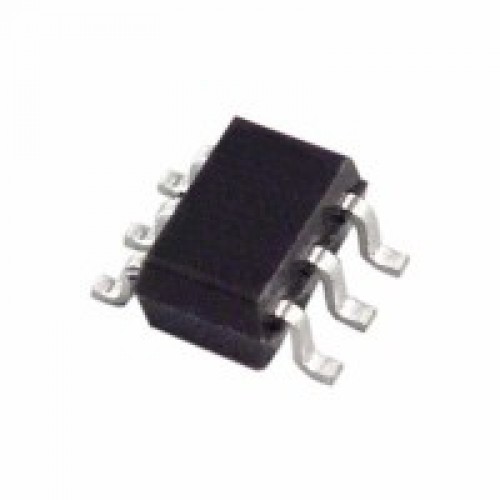

Product Images are shown for illustrative purposes only and may differ from actual product.
SMF05C 5-Line Transient Voltage Suppressor Array
- Stock: 85 InStock
- SKU: 0965 | DAB654
-
Rs.
23.60 (inc GST)
Rs.20.00 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
SMF05C 5-Line Transient Voltage Suppressor Array
This 5−line voltage transient suppressor array is designed for application requiring transient voltage protection capability.
SMF05C is intended for use in over−transient voltage and ESD sensitive equipment such as computers, printers, automotive electronics, networking communication and other applications. This device features a monolithic common anode design which protects five independent lines in a single SC−88 package.
Features of SMF05C
Protects up to 5−Line in a Single SC−88 Package
Peak Power Dissipation − 100 W (8 x 20 s Waveform)
ESD Rating of Class 3B (Exceeding 8 kV) per Human Body Model and Class C (Exceeding 400 V) per Machine Model.
Compliance with IEC 61000−4−2 (ESD) 15 kV (Air), 8 kV (Contact)
Flammability Rating of UL 94 V−0
SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
Pb−Free Packages are Available*
Applications of SMF05C
Hand−Held Portable Applications
Networking and Telecom
Automotive Electronics
Serial and Parallel Ports
Notebooks, Desktops, Servers
