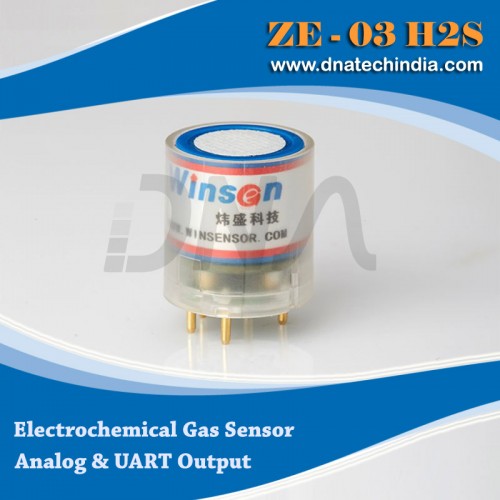

Winsen ZE03-H2S Electrochemical Gas Detection Module

  • Stock: Pre-Order Delivery 12-15 Days

    Availability: NotInStock priceValidUntil: 2026-12-17

  • Brand: Winsen
  • SKU: 1761 | DAB102

Availability: NotInStock priceValidUntil: 2026-12-17

  • Rs. 11,267.82 (inc GST)
    Rs.9,549.00 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Winsen ZE03-H2S Electrochemical Gas Detection Module

Winsen ZE03-H2S electrochemical H2S gas detection module with 0–100 ppm range, 1 ppm resolution, and UART plus analog outputs.

Winsen ZE03-H2S is an electrochemical gas detection module that measures hydrogen sulfide (H2S) in air across a 0–100 ppm range. It combines a three-electrode sensor and a microprocessor in a compact module for H2S gas monitoring.
The built-in temperature sensor supports temperature compensation as conditions change. UART digital and analog voltage outputs give designers two ways to connect the module to a controller. The analog output is an amplified sensor signal; use calibration values to convert it to concentration. This electrochemical H2S sensor module suits portable gas detectors and fixed gas detection equipment, where it can provide a concentration signal for a monitoring system.
Buy the Winsen ZE03-H2S through DNA for gas sensing projects and system builds. Browse our GAS and Air Quality Sensor range for suitable parts and options. Check other GAS and Air Quality Sensor that we have in stock
If you cannot find a part, contact DNA for import support. We support Indian electronics buyers with retail and bulk orders across components such as gas sensors, ADC and DAC modules, and motor driver modules. Contact Us

Features of Winsen ZE03-H2S Electrochemical Gas Detection Module

  • Three-electrode electrochemical sensing with an integrated microprocessor
  • Built-in temperature sensor supports temperature compensation
  • UART and analog outputs support different controller interfaces
  • Analog output provides an amplified sensor signal

Specifications of Winsen ZE03-H2S Electrochemical Gas Detection Module

  • Target gas: Hydrogen sulfide (H2S)
  • Detection range: 0–100 ppm
  • Resolution: 1 ppm
  • Working voltage: DC 5 ± 0.1 V
  • Working current: <5 mA
  • Outputs: 3 V TTL UART at 9600 baud, 8 data bits, 1 stop bit, no parity, and 0.6–3 V analog output (amplified sensor signal, not a direct concentration value)
  • Response time (T90): ≤30 s
  • Operating environment: −20 to 50 °C, 15% to 90% RH with no condensation

Applications of Winsen ZE03-H2S Electrochemical Gas Detection Module

  • Portable and fixed gas detectors
  • Gas detection equipment

Related Links for Winsen ZE03-H2S Electrochemical Gas Detection Module

Package Includes

  • 1 X Winsen ZE03-H2S Electrochemical Gas Detection Module
