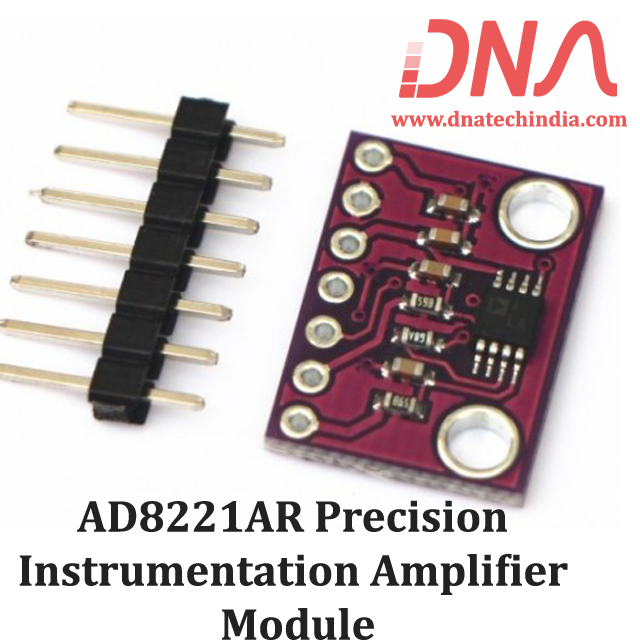

AD8221AR Precision Instrumentation Amplifier Module

AD8821 is a gain programmable, high performance Instrumentation Amplifier from Analog devices.

This module is a breakout board for AD8221 IC.

• The AD8221AR is a gain programmable, high-performance instrumentation amplifier with the highest common mode rejection ratio (CMRR) relative to frequency in the industry.

• Low-voltage offset, low offset drift, low gain drift, high gain accuracy, and high common-mode rejection ratio make this device an excellent choice for applications requiring optimal dc performance, such as bridge signal conditioning.

• The CJMCU-8221 can be operated from a single or dual supply, making it ideal for applications where the input voltage is ± 10 V.

• The device is rated over the industrial temperature range of -40 ° C to + 85 ° C for all ratings. In addition, the AD8221 can operate from -40 °C to + 125 °C .

• Programmable gain gives the user design flexibility. Through a resistor, gain can be set in the range of 1 to 1000.

We have Various sizes of Instrumentation Amplifiers. Check out our complete collection of Instrumentation Amplifiers.

AD8221AR Amplifier Module Features

• Easy to use

• Available in space-saving MSOP

• Gain set with 1 external resistor (gain range 1 to 1000)

• Wide power supply range : ±2.3V to ±18V

• Operational up to 125°C1

• Excellent AC specifications

• 80 dB minimum CMRR to 10 kHz (G = 1)

• 825 kHz, –3 dB bandwidth (G = 1)

• 2 V/μs slew rate

• Low noise

• 0.25 μV p-p input noise (0.1Hz to 10Hz)

• High accuracy dc performance (AD8221BR)

• 90 dB minimum CMRR (G = 1)

• 25 μV maximum input offset voltage

• 0.3 μV/°C maximum input offset drift

• 0.4 nA maximum input bias current

AD8221AR Amplifier Module Applications

• Weigh scales

• Industrial process controls

• Bridge amplifiers

• Precision data acquisition systems

• Medical instrumentation

• Strain gages

• Transducer interfaces

Package Include

• 1 x AD8221AR Precision Instrumentation Amplifier Module

Related link

• AD8221AR Data-Sheet
