Product Images are shown for illustrative purposes only and may differ from actual product.
AD7793 low noise amplifier module
- Stock: 7
- Brand: Generic
- SKU: 1618 | DAB051
-
Rs. 1,800.09 (inc GST)
Rs.1,525.50 + GSTQty :
| Also Available: PMS5003 PM2.5 AIR QUALITY SENSOR BY PLANTOWER in Stock |
GST Invoice: Available for all purchases; eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.

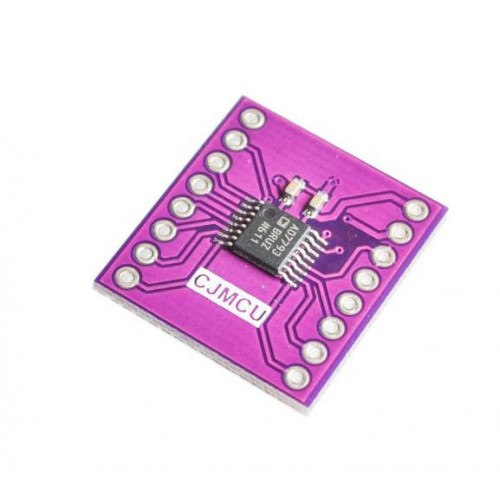

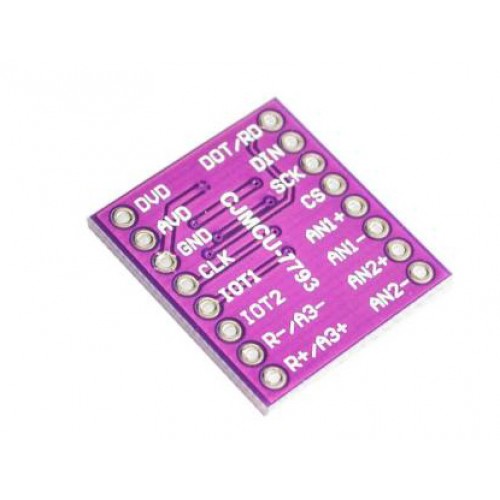

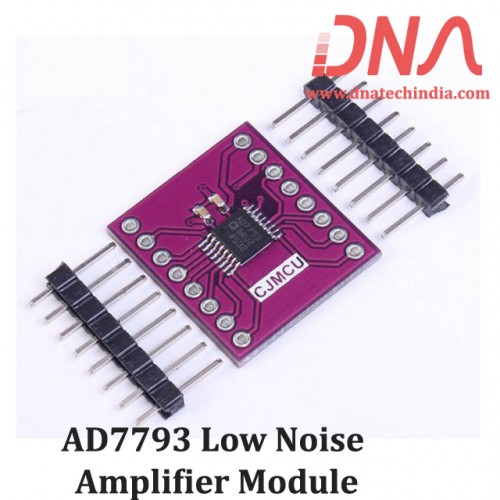

AD7793 low noise amplifier module
The AD7793 are low power, low noise, complete analog front ends for high precision measurement applications.
The AD7793 contain a low noise 16-/24-bit ∑-Δ ADC with three differential analog inputs. The on-chip, low noise instrumentation amplifier means that signals of small amplitude can be interfaced directly to the ADC. With a gain setting of 64, the rms noise is 40 nV when the update rate equals 4.17 Hz.
We have Various sizes of Modules. Check out our complete collection of Modules
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
AD7793 Module Features
- Up to 23 bits effective resolution
- RMS noise : 40nV (4.17Hz);85nV (16.7Hz)
- Current : 400uA typical
- Power-down : 1uA maximum
- Low noise programmable gain instrumentation amp
- Band gap reference with 4 ppm/celsius drift typical
- Update rate : 4.17Hz to 470Hz
- 3 differential inputs
- Internal clock oscillator
- Simultaneous 50Hz/60Hz rejection
- Programmable current sources
- On-chip bias voltage generator
- Burnout currents
- Power supply : 2.7V to 5.25V
- Temperature range : -40~105 celsius
- Independent interface power supply
AD7793 Module Applications
- Thermocouple measurements
- RTD measurements
- Thermistor measurements
- Gas analysis
- Industrial process control
- Instrumentation
- Portable instrumentation
- Blood analysis
- Smart transmitters
- Liquid/gas chromatography
Package includes
- 1 x AD7793 low noise amplifier module
- 1 x AD7793 low noise amplifier module
