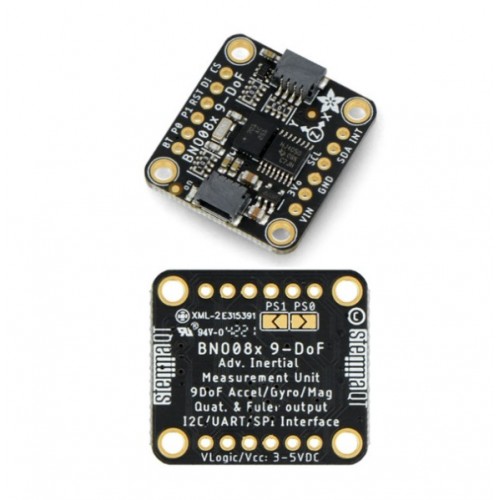

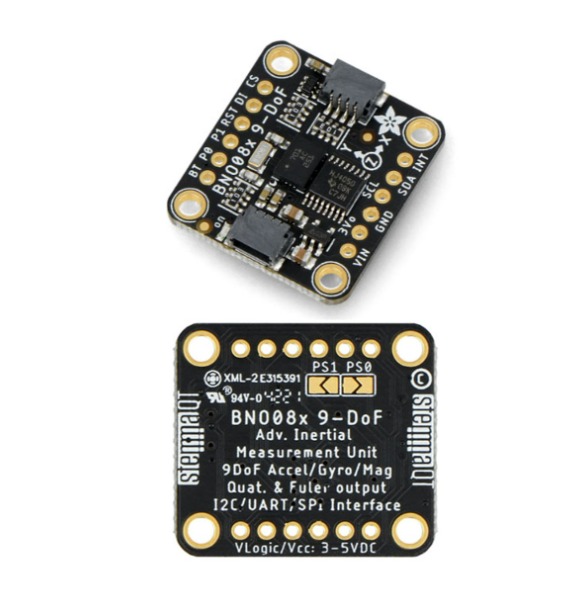

Product Images are shown for illustrative purposes only and may differ from actual product.

Adafruit 4754 BNO085 9-DOF Orientation and Motion Sensor Fusion Breakout Board

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-12-19

  • Brand: Adafruit
  • SKU: 8671 | DAH975

Availability: NotInStock priceValidUntil: 2026-12-19

  • Rs. 3,882.20 (inc GST)
    Rs.3,290.00 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Adafruit 4754 BNO085 9-DOF Orientation and Motion Sensor Fusion Breakout Board

Adafruit 4754 is a BNO085-based 9-DOF orientation and motion sensing breakout with sensor fusion, I2C and UART, and 3.3 V to 5 V input.

The Adafruit 4754 BNO085 breakout board is a 9-DOF orientation and motion sensor module for projects that need motion data. It combines an accelerometer, gyroscope and magnetometer, then uses onboard sensor fusion to provide orientation outputs.
Its I2C and UART interfaces support connection to a range of host systems. The board can provide quaternion and Euler-angle data, while automatic calibration helps manage sensor setup. This gives developers access to useful motion information without building a separate sensor-fusion process from raw readings.
Use this BNO085 sensor fusion breakout in robotics, drones, navigation systems, gaming and motion control, or industrial automation. Its combined sensing and orientation output support systems that need to track movement or direction.
DNA stocks Adafruit products for engineers and makers who need motion-sensing parts for development work. Check other Development Boards that we have in stock
If you cannot find a part, contact DNA for import support. We support Indian retail and bulk orders. You can also ask about Communication Modules, Water Quality Sensor, E-Paper Display, AC DC converter Offline Switcher, Motor Driver or OLED Display. Contact Us

Features of Adafruit 4754 BNO085 9-DOF Orientation and Motion Sensor Fusion Breakout Board

  • Combines accelerometer, gyroscope and magnetometer sensing
  • Uses onboard sensor-fusion algorithms
  • Provides orientation data in two formats
  • Supports I2C and UART host connections
  • Includes automatic calibration

Specifications of Adafruit 4754 BNO085 9-DOF Orientation and Motion Sensor Fusion Breakout Board

  • IMU chip: BNO085
  • Degrees of freedom: 9
  • Communication interfaces: I2C, UART
  • Input voltage: 3.3 V to 5 V
  • Output data formats: Quaternion, Euler angles

Applications of Adafruit 4754 BNO085 9-DOF Orientation and Motion Sensor Fusion Breakout Board

  • Robotics
  • Drones and UAVs
  • Gaming and motion control
  • Navigation systems

Related Links for Adafruit 4754 BNO085 9-DOF Orientation and Motion Sensor Fusion Breakout Board

Package Includes

  • 1 X Adafruit 4754 BNO085 9-DOF Orientation and Motion Sensor Fusion Breakout Board
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
