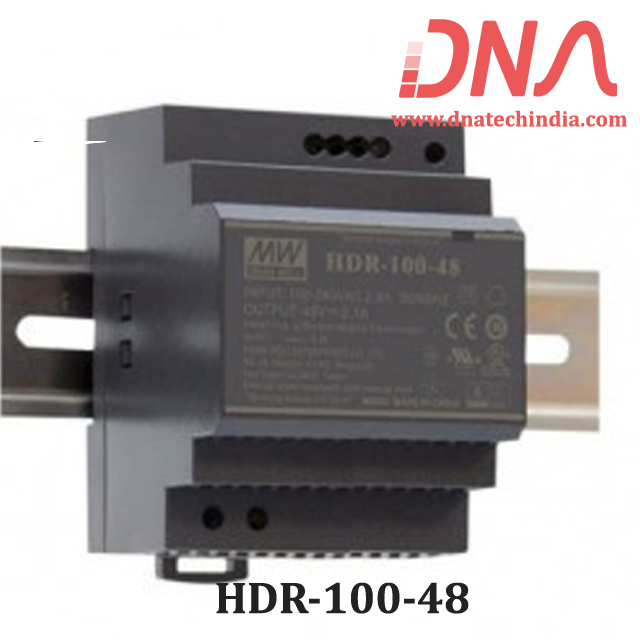

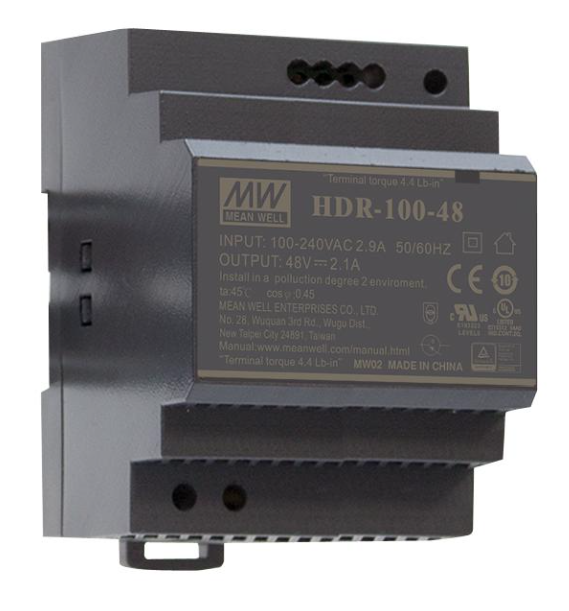

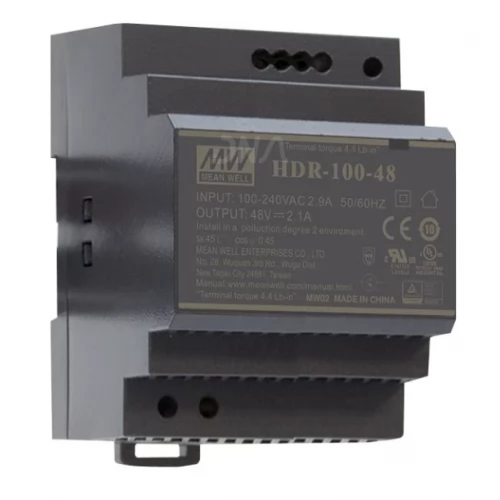

Mean Well HDR-100-48 48V DIN-Rail AC-to-DC Switching Power Supply

Mean Well HDR-100-48 48V DIN-Rail AC-to-DC Switching Power Supply

HDR-100-48 converts AC input to 48 V DC, with 1.92 A output, 92.2 W rated power and adjustable output voltage.

The Mean Well HDR-100-48 is a DIN-rail AC-to-DC switching power supply for systems that need a 48 V DC supply. It delivers up to 1.92 A and 92.2 W. Its universal AC input accepts 85–264 VAC, with 277 VAC operational.

The ultra-slim design helps save rail space in control cabinets. Adjustable output voltage supports voltage setting, while free-air convection cools the unit without a fan. Short-circuit, overload and overvoltage protection help manage common output faults.

This DIN-rail power supply suits household control, building automation and industrial control systems. Its rail mounting and 48 V DC output provide a compact supply option for control equipment and electro-mechanical apparatus.

DNA stocks Mean Well power supplies for electronics and control systems. Browse our Meanwell SMPS range to find a supply for your project or replacement needs. Check other Meanwell SMPS that we have in stock

For Indian electronics buyers, DNA offers import support and retail or bulk support. If you cannot find a part, contact us to ask about availability. You can also browse programmers, power supplies, microcontrollers, relays, sensors and super capacitors. Contact Us

Features of Mean Well HDR-100-48 48V DIN-Rail AC-to-DC Switching Power Supply

• Ultra-slim design helps save DIN-rail space
• Adjustable DC output supports voltage setting
• Short-circuit protection uses hiccup mode with automatic recovery after fault removal
• Overload protection uses constant-current limiting with automatic recovery after fault removal
• Overvoltage protection shuts down the output and requires repowering
• Free-air convection cooling needs no fan

Specifications of Mean Well HDR-100-48 48V DIN-Rail AC-to-DC Switching Power Supply

• Rated DC output voltage: 48 V
• Rated output current: 1.92 A
• Rated output power: 92.2 W
• Output voltage adjustment range: 48–48.7 V for the Pass LPS blank-type variant
• AC input voltage range: 85–264 VAC, with 277 VAC operational
• Operating temperature: −30 to +70 °C, refer to derating curve
• Typical efficiency: 90%
• Input-to-output withstand voltage: 4 kVAC

Applications of Mean Well HDR-100-48 48V DIN-Rail AC-to-DC Switching Power Supply

• Household control systems
• Building automation
• Industrial control systems
• Electro-mechanical apparatus

Related Links for Mean Well HDR-100-48 48V DIN-Rail AC-to-DC Switching Power Supply

• Mean Well HDR-100-48 48V DIN-Rail AC-to-DC Switching Power Supply Datasheet

• Other Products from Meanwell SMPS Category

Package Includes

• 1 X Mean Well HDR-100-48 48V DIN-Rail AC-to-DC Switching Power Supply
