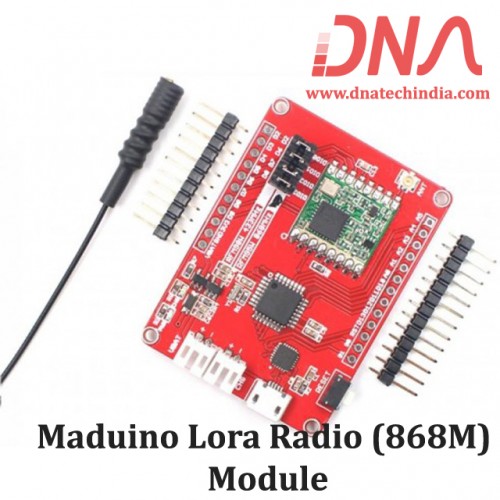

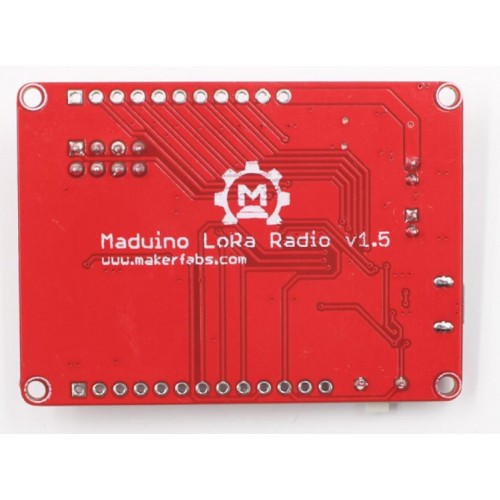

Maduino Lora Radio (868M) Module

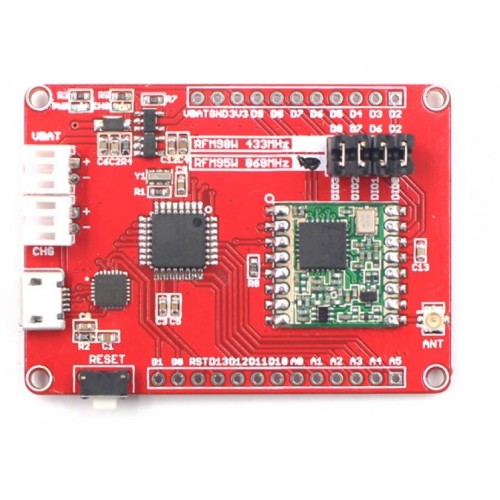

Maduino Lora Radio (868M) is a main board based on the ATmega328 and RFM95W 868MHz module.

The LoRa Radio allows the user to send data and reach extremely long ranges at low data-rates. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimising current consumption. We use the Arduino pro mini 3.3V 8MHz bootloader in this board and use the CP2104 as USB to serial to upload the code by Arduino IDE.

Features of Maduino Lora Radio (868M) Module

• BAT Input Voltage : 3.4-4.2V

• ATmega328 : 8MHz, 32KB flash, 2KB SRAM

• Integrated Power Control System

• Interface : I2C/SPI/UART/20*GPIO

• Arduino compatible

• Working Temperature : -40 – 85℃

• Programmable bit rate up to 300 kbps

• 127 dB Dynamic Range RSSI

• Uses the license-free ISM band : "European ISM" @ 868MHz

• +5 to +20 dBm up to 100 mW Power Output Capability (power output selectable in software)

• ~100mA peak during +20dBm transmit, ~30mA during active radio listening

• Range of approx. 2Km, depending on obstructions, frequency, antenna and power outpu
