Microchip ATATMEL-ICE USB In-Circuit Programmer and Debugger

  • Stock: 1

    Availability: InStock priceValidUntil: 2026-12-17

  • Brand: Microchip
  • SKU: 10826 | DAK055

Availability: InStock priceValidUntil: 2026-12-17

  • Rs. 27,787.30 (inc GST)
    Rs.23,548.56 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

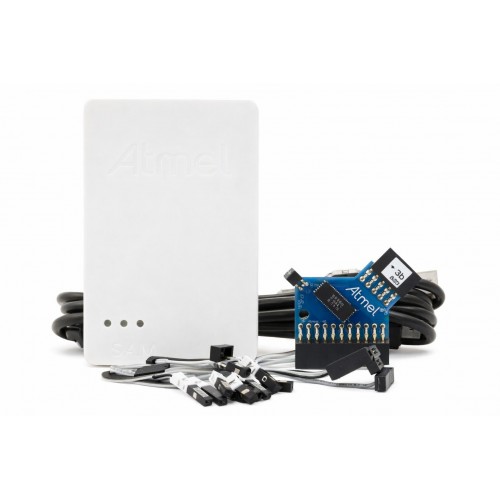

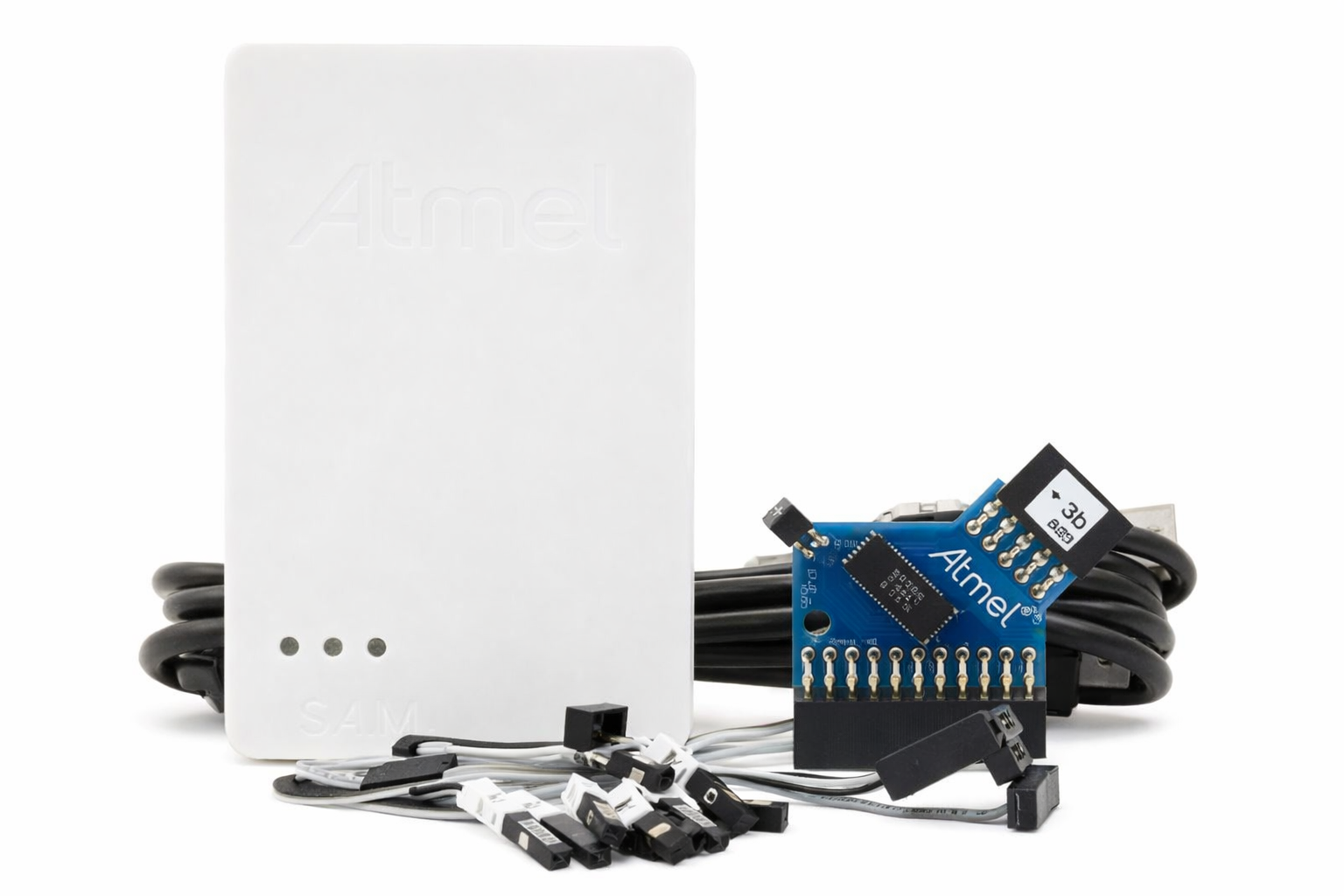

Microchip ATATMEL-ICE USB In-Circuit Programmer and Debugger

ATATMEL-ICE USB-powered programmer and debugger for supported AVR and SAM microcontrollers, with a 1.62 V to 5.5 V target voltage range.

The Microchip ATATMEL-ICE is a USB-powered in-circuit programmer and debugger for supported AVR and SAM microcontrollers. It works with on-chip programming and debug interfaces and supports target voltages from 1.62 V to 5.5 V. The unit draws power from its USB connection; it does not power the target board.
Its support for JTAG, SWD, PDI, SPI, debugWIRE, UPDI and aWire lets engineers work with several AVR and SAM device families through one tool. Two 10-pin connectors provide AVR and ARM Cortex debug pinouts. The tool can also capture ITM trace over the TRACE/SWO pin at up to about 3 MB/s.
Use the ATATMEL-ICE to program and debug supported AVR UC3, XMEGA, AVR 8-bit and SAM ARM Cortex-M microcontrollers. It also supports TPI programming for compatible tinyAVR devices.
Find the Microchip ATATMEL-ICE at DNA, a retailer of electronic components in India. Browse our range of tools for microcontroller programming and development. Check other Programmers that we have in stock
Buying electronic components in India? Contact DNA for import support and retail or bulk orders. If you cannot find a part, ask us about related Digital ICs, Microcontrollers, Programmers, HMI Displays, Resistors and DC to DC Converter ICs. Contact Us

Features of Microchip ATATMEL-ICE USB In-Circuit Programmer and Debugger

  • Programs and debugs supported AVR and SAM microcontrollers through on-chip interfaces
  • Supports multiple AVR and SAM programming and debug interfaces
  • Provides separate AVR JTAG and ARM Cortex debug pinouts
  • Captures UART-format ITM trace through the TRACE/SWO pin
  • Supports SPI and USART Data Gateway Interface modes when programming and debugging are not in use

Specifications of Microchip ATATMEL-ICE USB In-Circuit Programmer and Debugger

  • Target operating voltage: 1.62 V to 5.5 V
  • USB operating current: Less than 100 mA
  • Current drawn from target VTref: Less than 3 mA in debugWIRE mode and less than 1 mA in other modes
  • JTAG clock frequency: 32 kHz to 7.5 MHz
  • SWD clock frequency: 32 kHz to 10 MHz, with a 2 MHz maximum for SAM programming over SWD
  • SPI clock frequency: 8 kHz to 5 MHz
  • ITM serial trace capture rate: Up to approximately 3 MB/s over the TRACE/SWO pin

Applications of Microchip ATATMEL-ICE USB In-Circuit Programmer and Debugger

  • Programming and on-chip debugging of supported AVR UC3 microcontrollers
  • Programming and on-chip debugging of supported AVR XMEGA devices
  • Programming and debugging of AVR 8-bit microcontrollers with on-chip debug support
  • Programming and debugging of SAM ARM Cortex-M microcontrollers

Related Links for Microchip ATATMEL-ICE USB In-Circuit Programmer and Debugger

Package Includes

  • 1 X Microchip ATATMEL-ICE USB In-Circuit Programmer and Debugger
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
