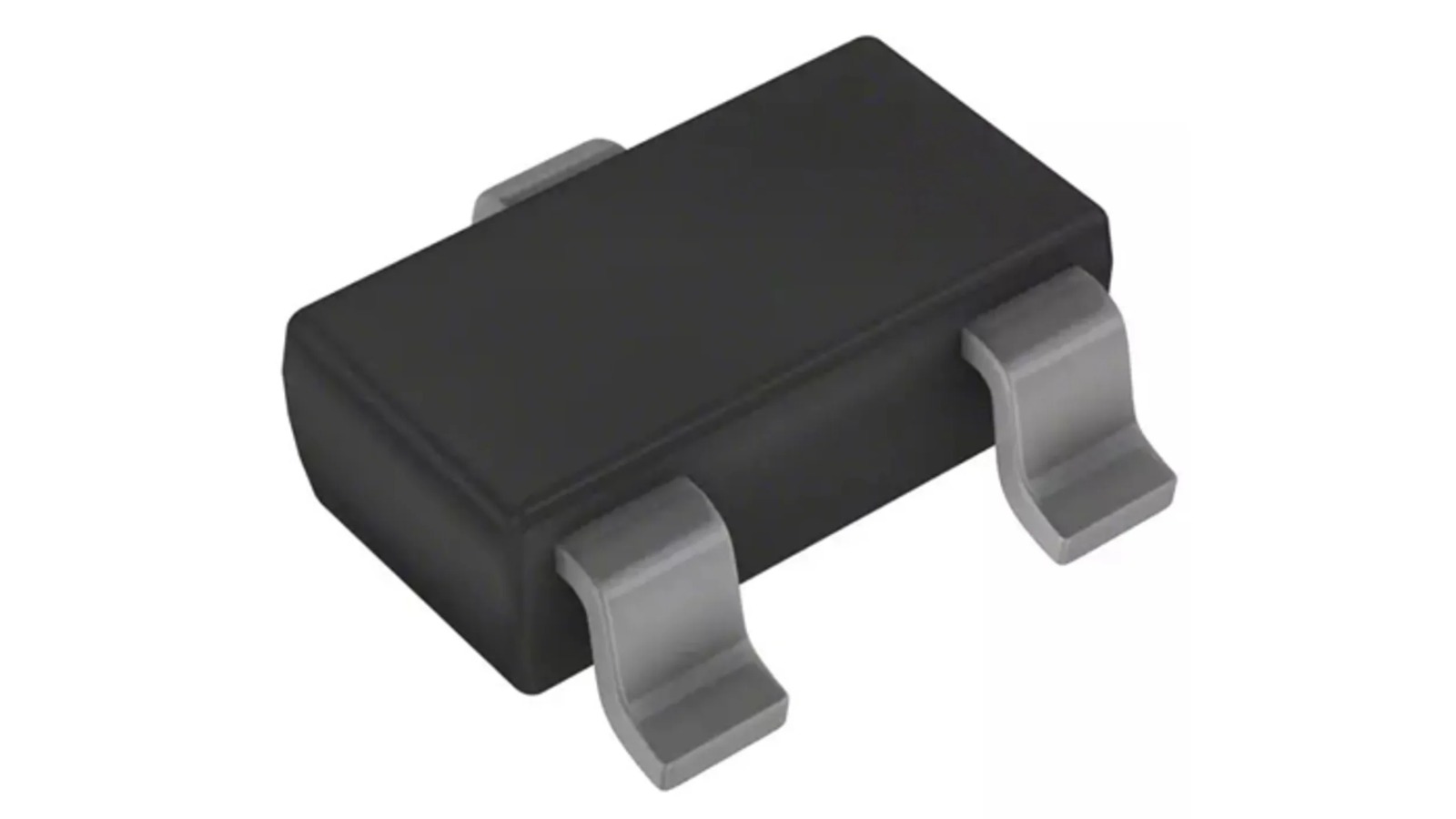

Product Images are shown for illustrative purposes only and may differ from actual product.

BAS101S -SOT23 High-Voltage Silicon Switching Diodes


Write a review | 0 reviews

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-09-15

  • SKU: 6076 | DAG916

Availability: NotInStock priceValidUntil: 2026-09-15

  • Rs. 12.67 (inc GST)
    Rs.10.74 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

BAS101S High-Voltage Silicon Switching Diode

BAS101S -SOT23 Dual diode with high-speed switching, 200V reverse voltage, and low forward voltage drop.

The BAS101S High-Voltage Silicon Switching Diode is ideal for high-speed and high-voltage applications. This dual diode offers a reverse voltage of 200V and a low forward voltage drop, ensuring efficient operation in various circuits. Its fast switching speed and low leakage current make it suitable for general-purpose switching applications.

Designed in a compact SOT-23 package, the BAS101S is easy to mount on densely populated PCBs. Its high reliability ensures robust performance in consumer, industrial, and automotive electronics. Use the BAS101S for reliable transitions in your electronic projects and achieve optimal results.

Whether you are designing consumer electronics or industrial applications, the BAS101S High-Voltage Silicon Switching Diode provides the performance and efficiency you need. Explore our range of diodes for more options that meet your circuit requirements.

Explore the Nexperia range available at DNA. Our selection of Diodes & Transistors ensures you find the right component for your needs. Check other Diodes & Transistors that we have in stock.

At DNA, we understand the needs of Indian electronics buyers. If you can't find specific parts, reach out to us. We can import items not in stock and support both retail and bulk orders. Consider checking related components like Capacitors, HMI Displays, and Relays. Contact Us.

Features of BAS101S High-Voltage Silicon Switching Diode

  • High Reverse Voltage
  • Fast Switching Speed
  • Low Forward Voltage Drop
  • Compact SMD Package
  • High Reliability

Specification of BAS101S High-Voltage Silicon Switching Diode

  • Reverse Voltage (VR): 200V
  • Forward Current (IF): 200mA
  • Peak Forward Surge Current (IFSM): 2A
  • Forward Voltage Drop (VF): 1V at IF = 100mA
  • Reverse Recovery Time (trr): 50ns
  • Package: SOT-23 (SMD)
  • Power Dissipation (Ptot): 300mW

Applications of BAS101S High-Voltage Silicon Switching Diode

  • High-speed switching circuits
  • General-purpose electronic applications
  • Consumer electronics
  • Industrial automation
  • Automotive electronics

Package Includes

  • 1 X BAS101S High-Voltage Silicon Switching Diodes
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
