BCP53 80V, 1A PNP medium power transistor (sot223)

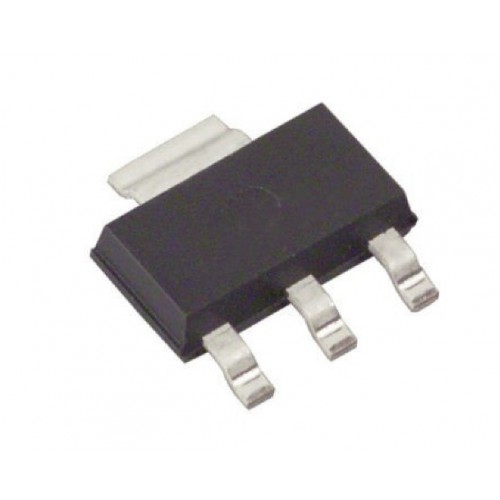

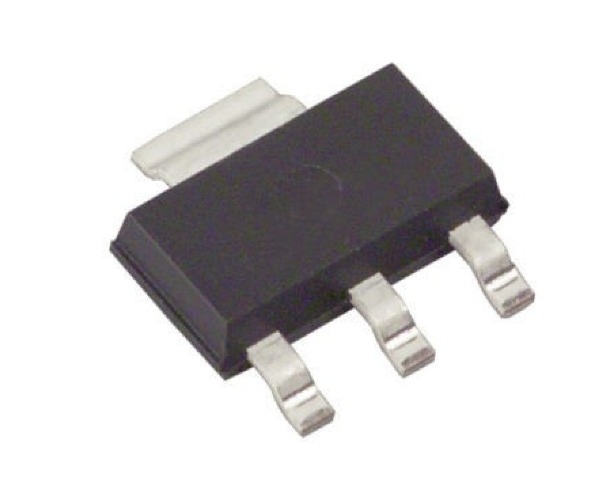

BCP53 PNP Medium Power Transistor SOT-223

BCP53 PNP Transistor for amplification & switching with 80V, 1A capability in SOT-223 package.

The BCP53 PNP Medium Power Transistor SOT-223 is ideal for general-purpose amplification and switching applications. It supports a maximum collector-emitter voltage of 80V and a collector current of 1A. The compact SOT-223 package ensures it fits into high-density circuit designs while providing excellent thermal efficiency. This transistor is suitable for low-power amplifiers and driver stages in power management circuits.

With a low saturation voltage, the BCP53 enhances efficiency in switching applications, making it a preferred choice for signal processing circuits and portable devices. Its wide operating temperature range from -65°C to +150°C ensures reliable performance in various environments. Trust the BCP53 for your electronic projects and applications.

Discover the reliability of the BCP53 PNP Medium Power Transistor SOT-223 for your electronic needs. It is designed to perform efficiently in diverse applications, including battery-powered devices and low-speed switching tasks.

Explore the range of Diodes & Transistors at DNA. The DNA BCP53 PNP Medium Power Transistor offers excellent performance for your electronic designs. Check other Diodes & Transistors that we have in stock.

If you're searching for specific electronic components, DNA is here to help. We can import parts that are not available and support both retail and bulk orders. Explore related items like SMPS, Inductor, Power Supply, and Capacitor. Contact Us.

Features of BCP53 PNP Medium Power Transistor SOT-223

• Medium Power Capability: 1A collector current
• High Voltage Rating: 80V
• Low Saturation Voltage
• Thermal Efficiency: SOT-223 package
• Compact Size for high-density designs

Specification of BCP53 PNP Medium Power Transistor SOT-223

• Collector-Emitter Voltage (Vce): Up to 80V
• Collector-Base Voltage (Vcb): Up to 100V
• Emitter-Base Voltage (Veb): 5V (max)
• Collector Current (Ic): 1A (max)
• Transition Frequency (FT): Approximately 150 MHz
• Operating Temperature Range: -65°C to +150°C

Applications of BCP53 PNP Medium Power Transistor SOT-223

• General-purpose low-power amplifiers
• Signal processing circuits
• Low-speed switching
• Driver stages in power management circuits
• Portable and battery-powered devices

Related Links for BCP53 PNP Medium Power Transistor SOT-223

• Other Products from Diodes & Transistors Category

Package Includes

• 1 X BCP53 PNP Medium Power Transistor SOT-223
