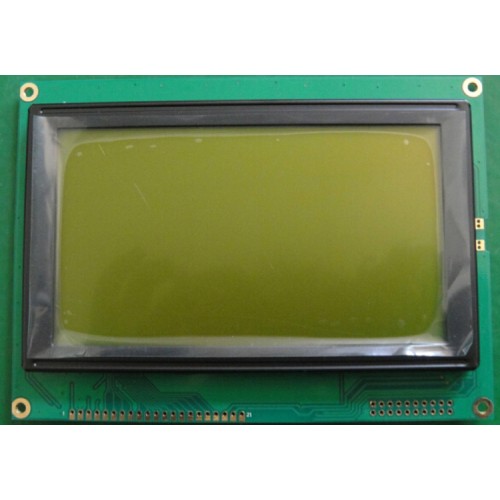

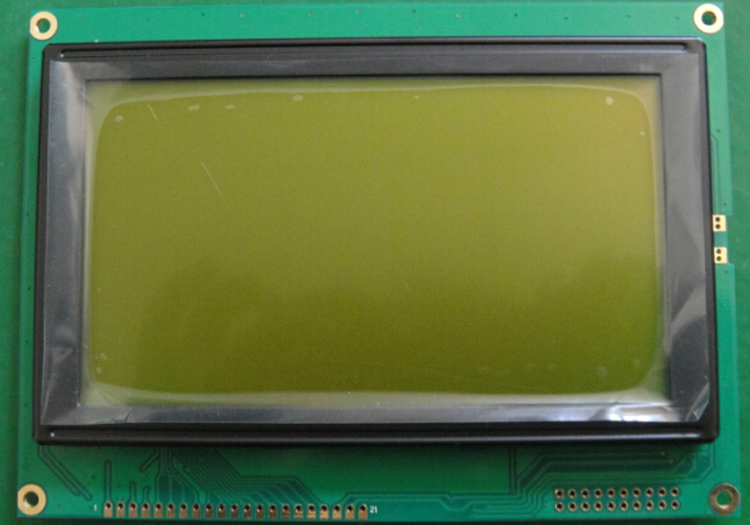

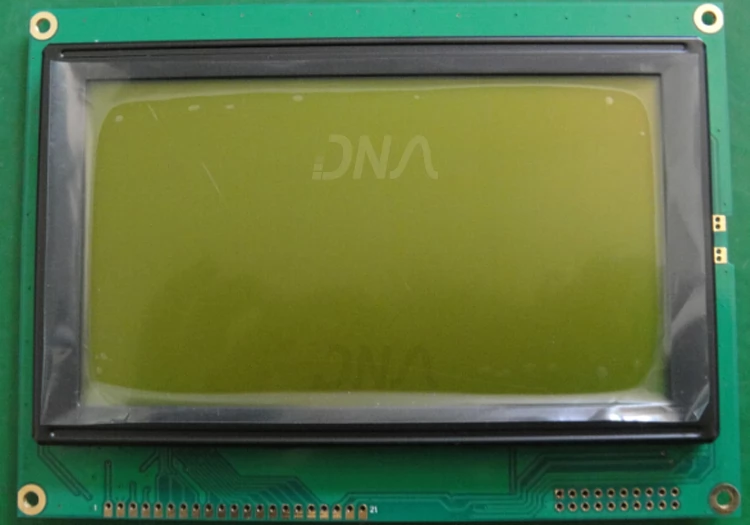

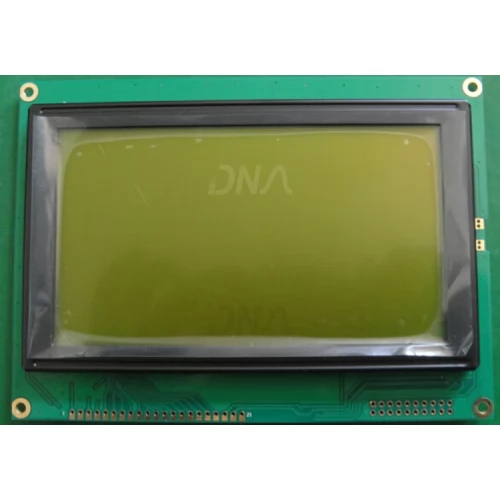

JHD240128 240X128 GLCD Green Display

The JHD240128/JHD240128D is based on T6963CFG controller. A fairly popular controller used on majority of these parallel character displays. It is easy to use and compatible with majority of microcontrollers out there. Remember, although they all use the same internal controller, the pinout varies for for displays from different brands. You can do a lot of graphics stuff with this display. You can create frames and even make small animations. Note that the displays expects individual pixels to be turned ON/OFF. It does not support ASCII Inputs like the character display. It may sound like a disadvantage but it is not. It can be used to create beautiful fonts of any sizes you need. You need to store these fonts in the microcontroller and send then to the display. We have tutorials that can help you do this fairly easily.

Features of JHD240128

• Display construction: 240X128 DOTS

• Display mode: STN OR FSTN( Y/G)

• Display type Positive: Transflective

• Backlight: Green 5.0V

• Viewing direction: 6 o’clock

• Operating temperature: Indoor

• Driving voltage: Single power

• Driving method: 1/128 duty, 1/12 bias

• Type: COB (Chip On Board)

• Number of data line: 8-bit parallel

• Connector: Pin

• Color : Green, Yellow

• Module size: 144mm X 104.0mm

• Viewing area: 114mm X 61.0mm

• Diameter of mounting hole: 3.0 mm

• Weight About: 50g
