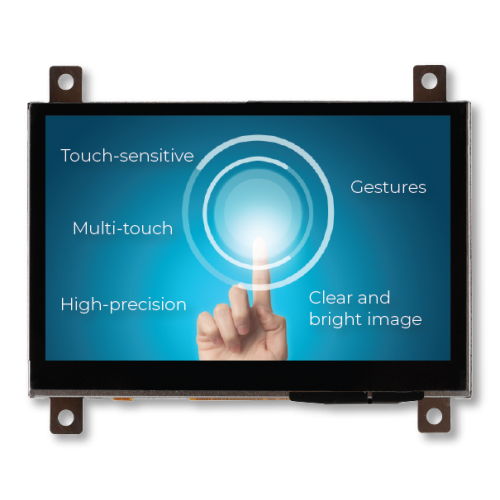

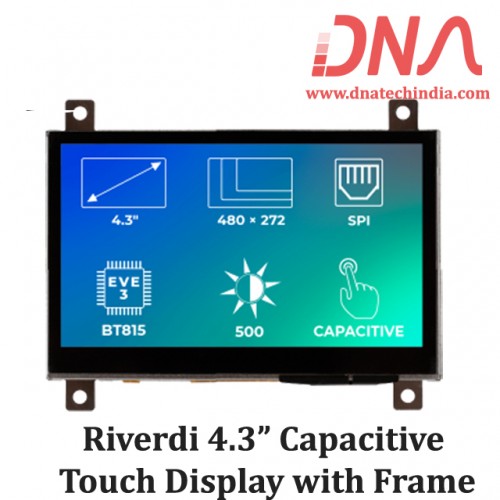

RiTFT-43-CAP-FR 4.3 Inch Capacitive Touch Display with Frame Mounting

Riverdi EVE Touch Screen Display with 4.3” Capacitive Touch and easy frame mounting

RiTFT-43-CAP-FR  is a  4.3’ TFT display with a capacitive touchscreen based on Bridgetek BT8xx controllers consists of a metal mounting frame, and a built-in LED inverter. The 480×272 resolution provides crisp and clear colors, while the screen is driven by the powerful  BT81x graphics controller. Riverdi EVE Series RiTFT-43-CAP-FR features the standard SPI/QSPI interface.

Riverdi Capacitive Touchscreens are extremely touch-sensitive and allow for clear and bright images. We recommend a capacitive touchscreen display if your application needs multi-touch, gestures,and high-precision. RiTFT-43-CAP-FR provides 12:00 o’clock viewing angle allows the user a natural and intuitive way to interact with the display.

We have Various sizes of Riverdi Display. Check out our complete collection of Riverdi Display.

Features for RiTFT-43-CAP-FR Touch Display

• Model Number : RVT43ALBFWC00


• Weight : 78.10 grams

• Active area : 95.04×53.86 mm

• Dimensions : 77.70×64.70×8.40 mm

• Operating temperature : ''-20~70'(°C)


• Dot pitch : 0.066×0.198 (mm2)

• LCD type : TFT

• Input Voltage : 3.3 Volts

• Viewing direction : 12:00 o'clock

• Gray Scale Inversion Direct : 6:00 o'clock

• Backlight Type : 10 LEDs

• Pixel Arrangement : RGB Vertical Stripe

• Color Depth : 16.7M

• Controller : BT815

• Resolution : 480×272

• Size : 4.3 inch

• Brightness : 500 (cd/m²)

• Touch Screen : Capacitive Type

• Interfaces: SPI/QSPI

• Driver IC : ILI6480BQ
