Product Images are shown for illustrative purposes only and may differ from actual product.

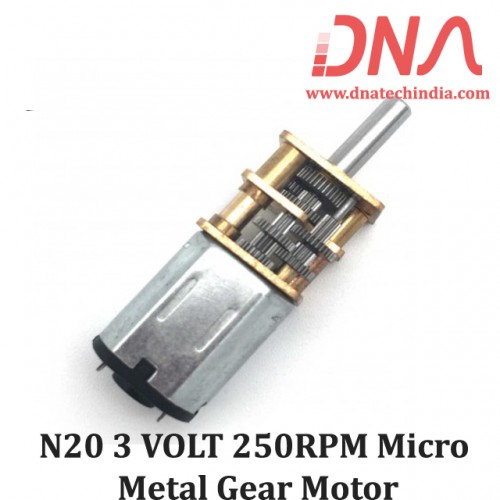

N20 3 VOLT 250RPM Micro Metal Gear Motor

  • Stock: Out Of Stock
  • SKU: 2312 | DAB855
  • Rs. 309.75 (inc GST)
    Rs.262.50 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

N20 3 VOLT 250RPM Micro Metal Gear Motor

GA12-N20-3 VOLT 250 RPM ALL METAL GEAR MICRO DC ENCODER MOTOR WITH PRECIOUS METAL BRUSH

This N20 3v 250 RPM Metal Gear Micro DC  Motor with Precious Metal Brush is a light weight high torque motor suitable for a variety of industrial, home applicances and hobby applications as well. This motor is equipped with an all metal gearbox assembly which provides an amazing troque for this size of the motor. Also the brushes used in the motor provided by Robokits are precious metal brushes and not carbon brushes. This ensures a higher working life of the motor compared with the motor with carbon brushes.
As compared to other motors in this size either with metal or plastic gears, the N20 all metal geared motor has a much higher torque to size ratio. The BO motor series1 and series 2 and the centre shaft 12 V motors available in the market are widely used for small industrial applications or robotic projects. However when comparing the torque, sturdiness, reliability and working life, the N20 motor beats all the other motors by a huge margin. The specifications mentioned below are a testament to the same.
The N20 motor is ideal for small IOT ( Industrial IOT) products like electric lock, webcam pan tilt and other similar actuator products which need good torque in limited space and in less weight. For the hobby segment products lilke robotic cars, micromouse, electric boat and all small motor related projects, where power consumption is a concern alongwith optimal pricing, the N20 all metal gear motor is a perfect fit.
This N20 encoder motor can help to accurately control the position of the motor.  This N20 Encoder motor is compatible with our PID Servo controller Drive.

We have Various sizes of RPM Motor. Check out our complete collection of RPM Motor.


If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

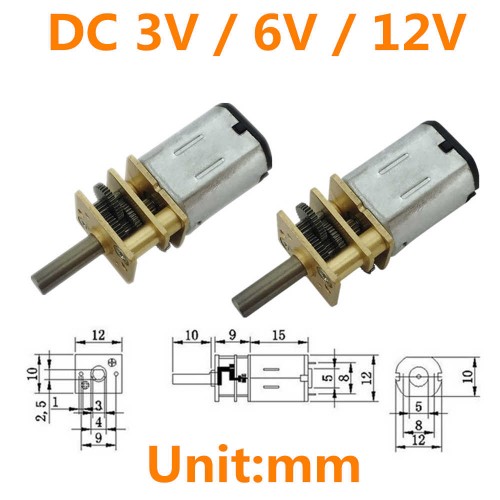

Specifications:

  • Model No : GA12 N20
  • Motor Type : Center Shaft DC  Geared Motor
  • Rated RPM : 225
  • Rated Voltage : 3V DC
  • Gear ratio : 1:30
  • No Load Current : 10 mA
  • Rated Current : 30 mA
  • Stall Current : 0.23 A
  • Rated Torque : 0.1 Kgcm
  • Stall Torque : 0.8 Kgcm
  • Shaft Type : D-type Single Side
  • Shaft Diameter (mm) : 3mm
  • Shaft Length (mm) : 9mm
  • Weight (gm) : 15

Encoder Specifications:

  • Encoder Type : Quad
  • PPR : 7
  • CPR : 7 x 4 = 28
  • CPR at output shaft : 896
  • Model : RMCS-2524

Encoder Connections:

  • Red – Motor +
  • White – Motor -
  • Yellow – Encoder B
  • Green – Encoder A
  • Black – Vcc (3 V)
  • Blue – Gnd

Package Includes:

  • 1 x GA12-N20-3v 250 RPM ALL Metal Gear Micro DC  Motor with Precious Metal Brush

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
