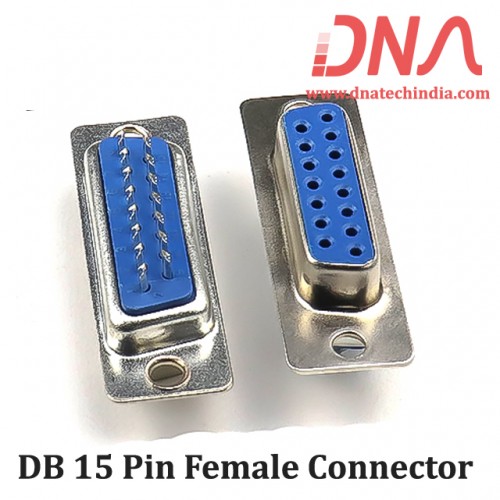

DB15 Pin Female Connector

DB15 Female wire type Connector (Hanging)

DB15 Female Welded Connector is one of the most common type of electrical connector. DB 15 connector is part of the D-sub miniature (D-sub) connector plug and socket family for computer and communication devices. DB-15 pins are arranged in rows of two, as one eight-pin row above a seven-pin row.

DB15 connectors are designed to work with the EIA/TIA 232 serial interface standard, which determined the function of all nine pins as a standard so that multiple companies could design them into their products. DB15connectors were commonly used for serial peripheral devices like keyboards, mice, joysticks, etc. Also, they are used on DB15 cable assemblies for data connectivity.

Today, the DB15 has mostly been replaced by more modern interfaces such as USB, PS/2, Firewire, and others. However, there are still many legacy devices that use the DB15 interface for serial communication.

Applications of DB15 Pin Female Connector

• Network ports.

• Computer video output.

• Game controller ports.

• Linear and rotary encoders in industries

Specification of DB15 Pin Female Connector

• Connector Type : DB-15
• Connector : Female
• Voltage Rating (V) : 250V AC
• Current Rating (A) : 5
• Insulation Resistance (MΩ) : 1000
• Contact Resistance : 20mΩ
• Operating Temperature Range (°C) : -55 to 125
• Material : Metal and plastic
• Length (mm) : 39
• Width (mm) : 12
• Height (mm) : 15
• Weight (gm) : 4

Features of DB15 Pin Female Connector:

• Solder cup configuration for longevity.

• Nickel-plated terminals.

• Gold plated pins.

• Good quality.

Package Includes:

• DB 15 Pin Female Connector x 1
