CD75 100UH SURFACE MOUNT POWER DC-DC CONVERTER INDUCTORS

CD75 100UH SURFACE MOUNT POWER DC-DC CONVERTER INDUCTORS

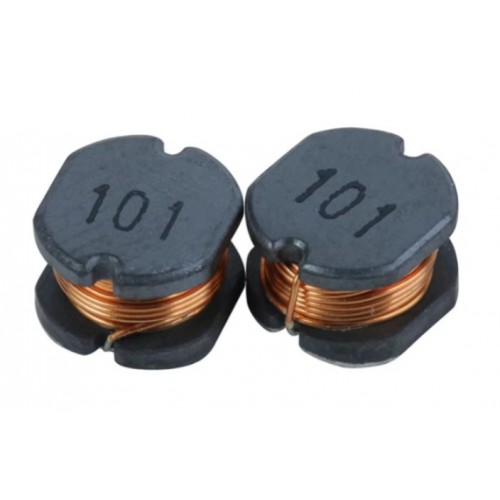

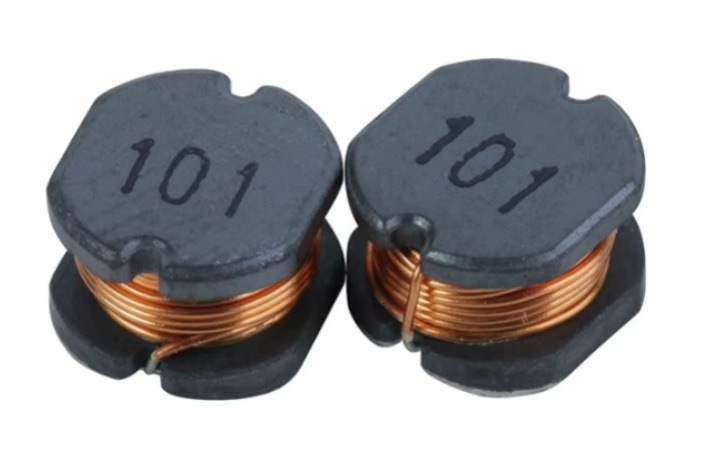

A CD75 100μH Surface Mount Power Inductor (100 micro H) is a 2-terminal passive device having a coil of wire wound wrapped around a core. A core may be magnetic metal or air to produce a high inductance in the wire. The CD75 series 100µH inductor provides stable inductance and high current capacity in a small footprint. It is constructed with a ferrite core, which offers excellent magnetic properties and maintains consistent performance across a range of frequencies and temperatures. This inductor is suitable for compact designs requiring high inductance values without sacrificing efficiency. The CD75 100µH inductor is a compact, high-quality power inductor widely used in applications such as DC-DC converters, power supplies, and EMI filtering. Designed with a ferrite core, this inductor ensures efficient energy storage and smooth current flow, making it ideal for circuits that demand stable inductance and low power loss.

DNA solutions, Nashik has various types of Inductor's. Check out our complete collection of Inductor's.

• Compact and Space-Efficient Design: Small footprint, suitable for PCB designs with limited space.

• High Current Handling: Capable of withstanding significant DC currents without saturation, ideal for high-power applications.

• Low DC Resistance (DCR): Reduces power loss and heat generation, improving overall circuit efficiency.

• Stable Inductance: Maintains consistent inductance over a wide range of operating conditions, supporting reliable circuit performance.

• High Durability: Reliable for continuous operation in power circuits and long-lasting under various environmental conditions.

Specifications of CD75 100UH SURFACE MOUNT POWER DC-DC CONVERTER INDUCTORS

• Inductance: 100 µH ±20%

• DC Resistance (DCR): Typically around 0.1Ω (may vary slightly depending on model)

• Saturation Current: Usually rated up to 1.5A (specific rating may vary by exact model and manufacturer)

• Core Material: Ferrite, providing stable magnetic properties and low loss.

• Operating Temperature Range: -40°C to +125°C, suitable for a variety of environments.

• Mounting Type: Generally available as SMD or through-hole, depending on the exact CD75 model.

Package Includes

• 1 x CD75 100UH SURFACE MOUNT POWER DC-DC CONVERTER INDUCTORS
