Product Images are shown for illustrative purposes only and may differ from actual product.

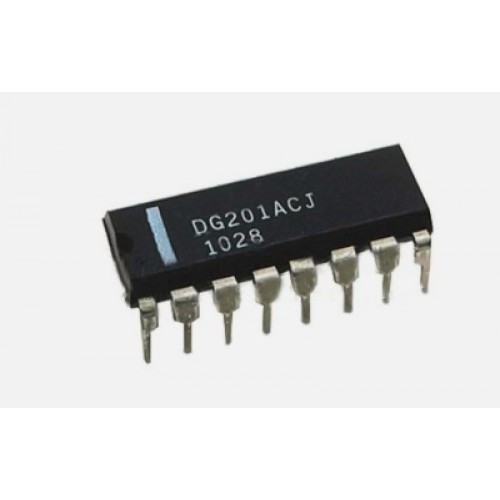

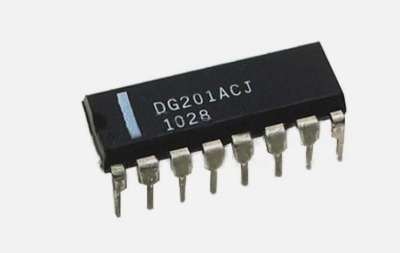

DG201 QUAD CMOS ANALOG SWITCHS DIP IC

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-12-17

  • SKU: 7787 | DAH453

Availability: NotInStock priceValidUntil: 2026-12-17

  • Rs. 246.62 (inc GST)
    Rs.209.00 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

DG201 Quad CMOS Analog Switch IC

DG201 Quad CMOS Analog Switch IC for analog signal routing; Low on-resistance; Fast switching times.

The DG201 Quad CMOS Analog Switch IC is a reliable solution for analog signal routing. It features four independently controlled SPST switches, ideal for multiplexing and sample-and-hold circuits. Its low on-resistance and high off-isolation ensure minimal interference, making it suitable for various applications, including audio and video signal switching. The DG201 operates with both unipolar and bipolar power supplies, providing versatility in system designs.
Engineered for performance, the DG201 supports a wide range of signal integrity requirements, simplifying integration into digital control systems. With a typical on-resistance of 35 Ω and a dual power supply capability, it is perfect for battery-operated devices and instrumentation. Utilize the DG201 Quad CMOS Analog Switch IC in data acquisition systems and automation tasks for efficient operation.
Explore the benefits of the DG201 in communication systems as it enhances audio and video performance. Its robust design ensures reliability in demanding environments, making it a preferred choice for engineers and developers across India.
At DNA, we offer a comprehensive range of Components & IC's from leading manufacturers. Explore the DG201 Quad CMOS Analog Switch IC and discover how it can enhance your projects. Check other Components & IC's that we have in stock.
If you're an Indian electronics buyer, we can help you find the right parts. If you cannot find specific components like Microcontrollers, Sensors, or Transistors, reach out to us. We can import items not in stock and support both retail and bulk orders. Contact Us.

Features of DG201 Quad CMOS Analog Switch IC

  • Four independently controlled SPST switches
  • Low on-resistance
  • High off-isolation
  • Fast switching times
  • Versatile power supply options

Specification of DG201 Quad CMOS Analog Switch IC

  • Single Power supply: +5V to +30V
  • Dual Power supply: ±5V to ±20V
  • On-Resistance: Typically 35 Ω
  • Off Leakage Current: Typically ±0.1 nA
  • Analog Signal Range: Up to ±15V for dual supply

Applications of DG201 Quad CMOS Analog Switch IC

  • Audio and Video Signal Switching
  • Data Acquisition Systems
  • Sample-and-Hold Circuits
  • Instrumentation
  • Communication Systems

Package Includes

  • 1 X DG201 Quad CMOS Analog Switch IC
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
