Product Images are shown for illustrative purposes only and may differ from actual product.

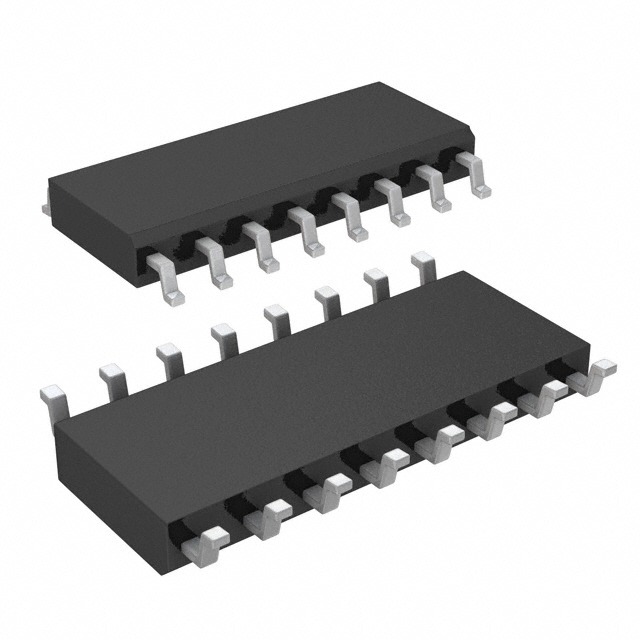

DG508 CMOS Analog Multiplexer SMD IC

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-12-17

  • SKU: 9770 | DAI507

Availability: NotInStock priceValidUntil: 2026-12-17

  • Rs. 272.58 (inc GST)
    Rs.231.00 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

DG508 CMOS Analog Multiplexer SMD IC for Precision Switching

DG508 Analog Multiplexer SMD IC for 8-channel switching with low on-resistance and wide signal range.

The DG508 CMOS Analog Multiplexer SMD IC is an 8-channel, single-ended multiplexer ideal for precision analog and digital signal routing. This IC connects one of eight input lines to a common output, controlled via digital address inputs. With a low on-resistance and a wide analog signal range of ±15 V or up to 30 V single-ended, it ensures minimal distortion in audio and video applications. Its low charge injection and break-before-make switching action prevent signal overlap, making it perfect for sensitive applications.
The DG508 CMOS Analog Multiplexer SMD IC finds extensive use in audio and video signal switching, communication equipment, and industrial automation. Its TTL and CMOS logic compatibility allow seamless integration into various systems. This multiplexer operates efficiently across a temperature range of -40 °C to +85 °C, making it suitable for both commercial and industrial environments.
For those looking to enhance their electronic projects, the DG508 CMOS Analog Multiplexer SMD IC offers reliability and performance. Whether you're working on test equipment or automation controls, this multiplexer is a vital component to ensure accurate signal routing. Explore our collection of multiplexer ICs to find the right fit for your needs.
Explore the reliability of MISC ANALOG IC's at DNA. The DG508 CMOS Analog Multiplexer SMD IC is perfect for your signal routing needs. Check other "MISC ANALOG IC's" that we have in stock.
At DNA, we support Indian electronics buyers in finding the components they need. From HMI Displays to DC to DC Converters, or even MOSFETs, reach out if you're looking for specific parts. We can import items if they’re not available. Contact Us.

Features of DG508 CMOS Analog Multiplexer SMD IC

  • 8-channel single-ended operation
  • Low on-resistance
  • Wide analog signal range
  • Low charge injection
  • Break-before-make switching action
  • TTL and CMOS compatible

Specification of DG508 CMOS Analog Multiplexer SMD IC

  • Number of Channels: 8 Channel
  • Series: DG508
  • Minimum Dual Supply Voltage: +/- 4.5 V
  • Charge Injection: ~5 pC
  • Operating Temperature: -40 °C to +85 °C

Applications of DG508 CMOS Analog Multiplexer SMD IC

  • Audio signal switching
  • Video signal switching
  • Communication equipment
  • Industrial control
  • Test equipment

Related Links for DG508 CMOS Analog Multiplexer SMD IC for Precision Switching

Package Includes

  • 1 X DG508 CMOS Analog Multiplexer SMD IC
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
