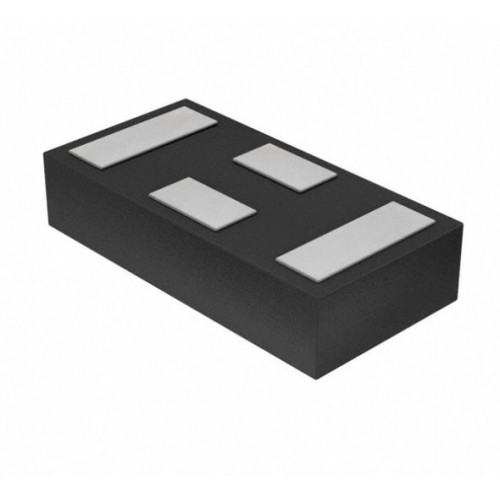

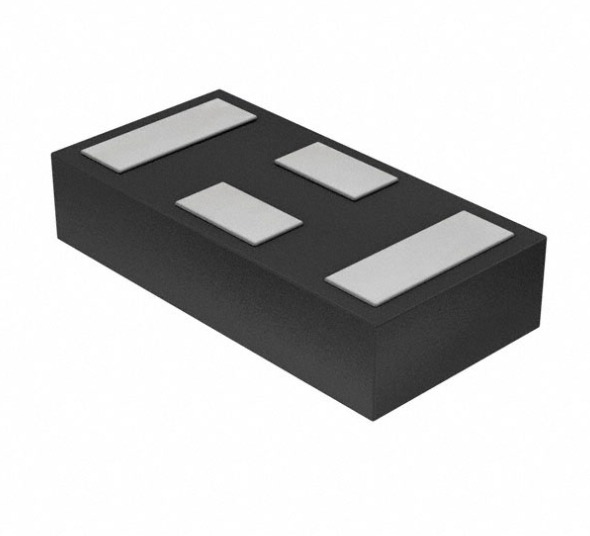

Product Images are shown for illustrative purposes only and may differ from actual product.

DLF162500LT-5028A1 RF Low Pass Filter


Write a review | 2 reviews

  • Stock: 5

    Availability: InStock priceValidUntil: 2026-10-05

  • SKU: 8211 | DAH738

Availability: InStock priceValidUntil: 2026-10-05

  • Rs. 81.77 (inc GST)
    Rs.69.30 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

DLF162500LT-5028A1 RF Low Pass Filter

DLF162500LT-5028A1 Low Pass Filter for WLAN and Bluetooth; 0.48 dB insertion loss; 35 dB attenuation.

The DLF162500LT-5028A1 RF Low Pass Filter operates in the 2.4 GHz to 2.5 GHz range, making it ideal for WLAN and Bluetooth applications. Its compact size of 1.60 mm x 0.80 mm x 0.35 mm fits well in space-limited designs. The filter minimizes signal loss with a maximum insertion loss of 0.48 dB, ensuring strong performance in communication systems.

This filter also provides high attenuation, with a minimum of 35 dB in the 4.8 GHz to 5.0 GHz and 7.2 GHz to 7.5 GHz ranges, effectively reducing unwanted harmonics. The DLF162500LT-5028A1 is a Surface Mount Device (SMD) designed for easy integration into various electronic devices. Its operating temperature range of -40°C to +85°C ensures reliability in diverse environments.

Applications for the DLF162500LT-5028A1 RF Low Pass Filter include Wireless Local Area Networks, Bluetooth devices, and general RF communication systems. This filter is a great choice for engineers looking to enhance signal integrity in their designs.

Explore the world of Wireless - RF at DNA. Discover the TDK brand and enhance your projects with reliable components. Check other Wireless - RF that we have in stock.

At DNA, we cater to all your electronic needs. If you can't find specific parts, we can import them for you. We support both retail and bulk orders. Explore related items like Analog IC, Digital IC, Development boards, Transistor, Capacitor, and LCD. Contact Us.

Features of DLF162500LT-5028A1 RF Low Pass Filter

  • Compact Size
  • Low Insertion Loss
  • High Attenuation

Specification of DLF162500LT-5028A1 RF Low Pass Filter

  • Frequency Range: 2.4 GHz to 2.5 GHz
  • Characteristic Impedance: 50 Ω
  • Return Loss: Minimum of 12 dB
  • Operating Temperature Range: -40°C to +85°C
  • Mounting Type: Surface Mount Device (SMD)
  • Package: 0603 (1608 Metric), 4 PC Pad

Applications of DLF162500LT-5028A1 RF Low Pass Filter

  • Wireless Local Area Networks
  • Bluetooth Devices
  • General RF Communication Systems

Package Includes

  • 1 X DLF162500LT-5028A1 RF Low Pass Filter
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
