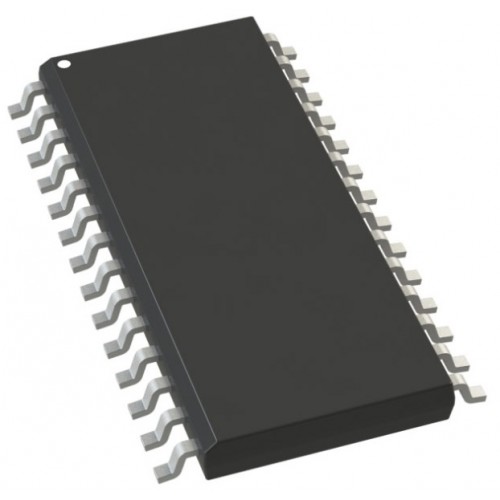

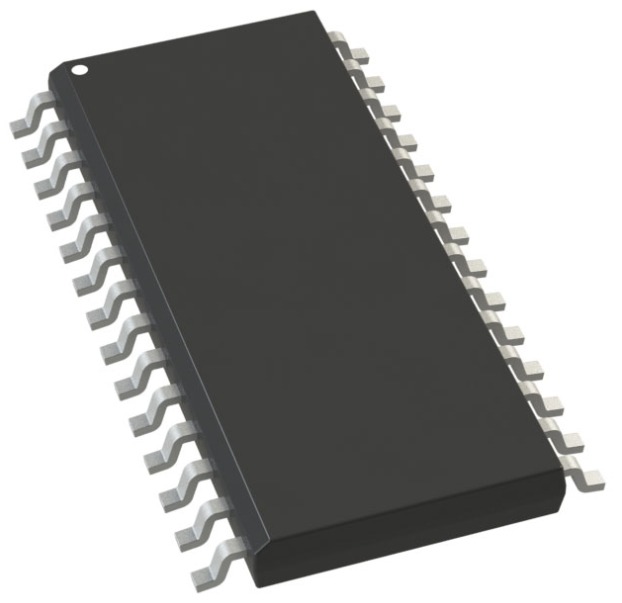

DRV8841PWP Bipolar Motor Driver Power MOSFET Parallel 28-HTSSOP SMD IC

DRV8841PWP Bipolar Motor Driver Power MOSFET Parallel 28-HTSSOP SMD IC

The DRV8841PWP is a dual H-Bridge motor driver that integrates Power MOSFETs in a 28-pin HTSSOP (Hot-Top Small Outline Package). It is designed to control bipolar stepper motors, typically used in applications that require precise position control, such as 3D printers, CNC machines, and robotics. The IC provides high-efficiency motor driving capabilities with adjustable current control, microstepping support, and various built-in protection features to ensure reliable operation.

DNA solutions, Nashik has various types of MOSFET's. Check out our complete collection of MOSFET's.

• Dual H-Bridge Configuration: The DRV8841PWP integrates two H-bridge drivers, enabling control of two-phase bipolar stepper motors

• Current Control: Adjustable current control (via an external sense resistor) allows for smooth and efficient operation

• Microstepping Capability: Supports up to 1/32 microstepping, enabling fine control over motor movement for precise position and velocity control

• Integrated Power MOSFETs: The device includes N-channel MOSFETs for efficient motor driving with reduced heat dissipation

• Wide Voltage Range: Operates with a supply voltage of 8V to 45V, making it suitable for a wide range of motor and application voltages

Specifications of DRV8841PWP Bipolar Motor Driver Power MOSFET Parallel 28-HTSSOP SMD IC

• Device Type: Bipolar Stepper Motor Driver

• Package Type: 28-HTSSOP (Surface Mount Device)

• Input Voltage Range: 8V to 45V

• Operating Temperature Range: -40°C to 125°C

• Microstepping Resolution: Supports up to 1/32 microstepping

• Control Interface: Step and direction control inputs for motor driving

• PWM Switching Frequency: Up to 100 kHz

Applications of DRV8841PWP Bipolar Motor Driver Power MOSFET Parallel 28-HTSSOP SMD IC

• Robotics

• 3D Printers

• CNC Machines

• Camera Positioning Systems

• Home Appliances

Package Includes

      1 x DRV8841PWP Bipolar Motor Driver Power MOSFET Parallel 28-HTSSOP SMD IC
