HX710B 24Bit ADC

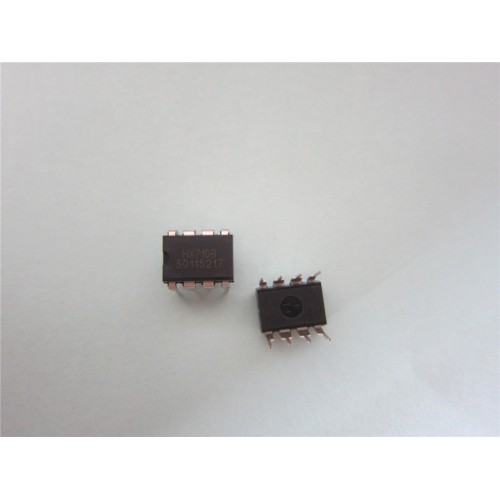

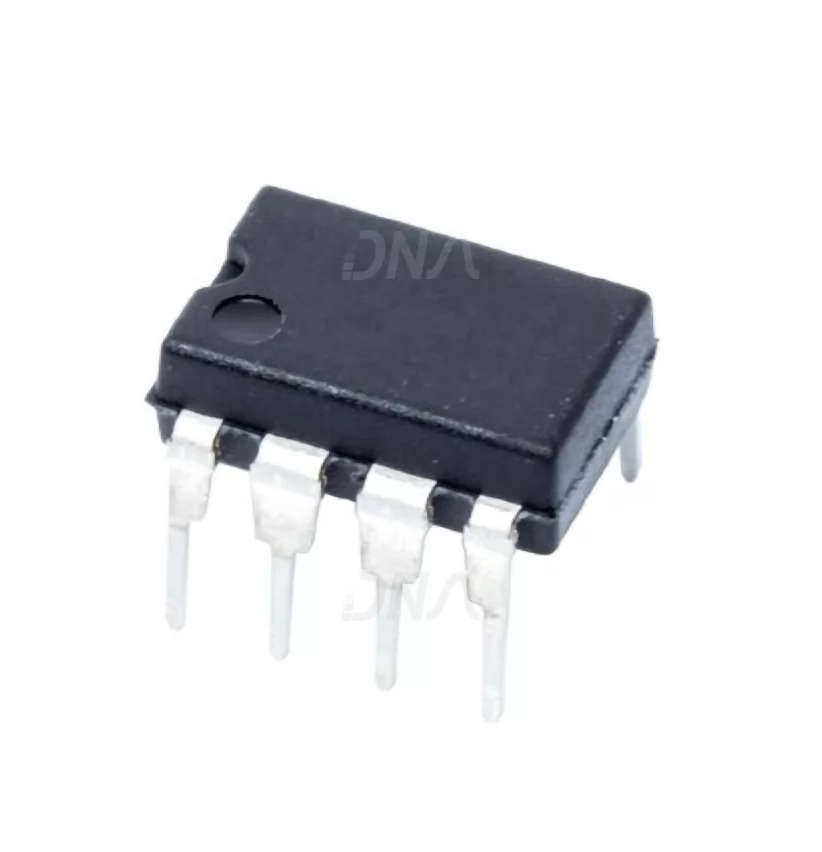

Avia HX710B 24Bit ADC Precision Converter

HX710B 24Bit ADC for weigh scales with low noise amplifier gain of 128 and temperature sensing features.

The Avia HX710B 24Bit ADC is a precision analog-to-digital converter designed for weigh scales and industrial control applications. This device features a built-in low-noise amplifier with a gain of 128, allowing it to interface directly with bridge sensors. The on-chip oscillator and power-on-reset circuitry streamline the initialization process, requiring no external components or programming. With selectable output data rates of 10SPS or 40SPS, the HX710B ensures accurate readings under various conditions.

The HX710B operates within a supply voltage range of 2.6 to 5.5V and performs well in temperatures ranging from -40 to +85 degrees Celsius. Its low current consumption—less than 1.2mA during normal operation—makes it suitable for battery-powered applications. This makes the Avia HX710B an ideal choice for high-performance measurement systems where precision and reliability are crucial.

For those seeking a dependable ADC solution, the Avia HX710B 24Bit ADC offers advanced features like simultaneous 50Hz and 60Hz supply rejection. Its simple digital control through pin-driven interfaces allows for easy integration into existing systems. Explore the possibilities with the HX710B for your electronic component needs.

Explore the precision of Avia ADC & DAC products at DNA. Discover how the Avia HX710B enhances your measurement applications. Check other ADC & DAC that we have in stock.

If you're searching for specific electronic components, DNA can help. We support retail and bulk orders and can import hard-to-find parts. Consider checking our range of Sensor Modules, HMI Displays, SMPS, Capacitors, LCDs, and IGBTs. Contact Us.

Features of Avia HX710B 24Bit ADC Precision Converter

• On-chip temperature measurement
• DVDD and AVDD voltage difference measurement
• On-chip low noise amplifier with a gain of 128
• On-chip oscillator requiring no external component
• Simple digital control with no programming needed
• Selectable output data rate of 10SPS or 40SPS
• Current consumption: normal operation < 1.2mA
• Operation voltage range: 2.6 ~ 5.5V
• Operation temperature range: -40 ~ +85°C

Specification of Avia HX710B 24Bit ADC Precision Converter

• Full-scale differential input voltage: ±20mV
• Package: SOP-8
• Power-down current: < 1µA

Applications of Avia HX710B 24Bit ADC Precision Converter

• Weigh scales
• Industrial control systems
• High-performance measurement systems
• Temperature monitoring
• Bridge sensor interfacing

Package Includes

• 1 X Avia HX710B 24Bit ADC Precision Converter
