CP2102 USB to TTL IC

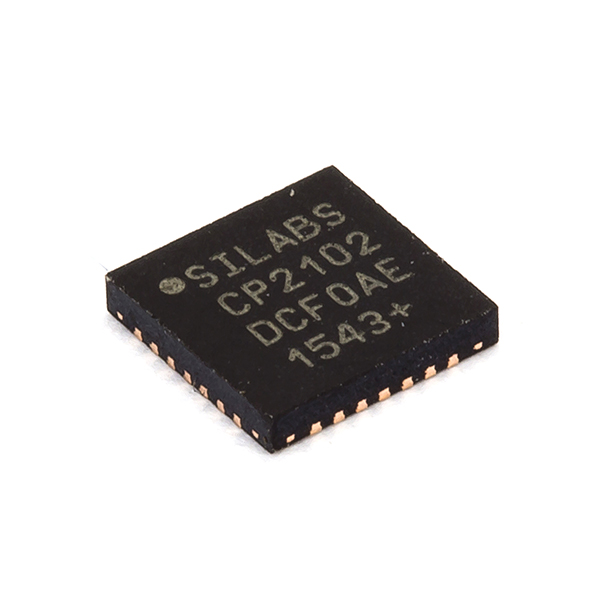

CP2102 SMD USB-to-TTL Bridge Controller

No other external USB components are required.

The high-performance, low cost CP21xx USB to UART bridge family offers a complete plug and play interface solution that includes royalty-free driver suites and a comprehensive design ecosystem that enables customers to speed time-to-market. Crystal-less operation, in-system programming memory and small body size packages reduce cost, simplify design and shorten development time. The CP2102 is a highly-integrated USB-to-UART Bridge Controller providing a simple solution for updating RS-232 designs to USB using a minimum of components and PCB space. The CP2102 includes a USB 2.0 full speed function controller, USB transceiver, oscillator, EEPROM or EPROM, and asynchronous serial data bus (UART) with full modem control signals in a compact 5 x 5 mm QFN-28 package.

The on-chip programmable ROM may be used to customize the USB Vendor ID, Product ID, Product Description String, Power Descriptor, Device Release Number, and Device Serial Number as desired for OEM applications. The programmable ROM is programmed on-board via the USB, allowing the programming step to be easily integrated into the product manufacturing and testing process. Royalty-free Virtual COM Port (VCP) device drivers provided by Silicon Laboratories allow a CP2102 based product to appear as a COM port to PC applications. The CP2102 UART interface implements all RS-232 signals, including control and handshaking signals, so existing system firmware does not need to be modified. In many existing RS-232 designs, all that is required to update the design from RS-232 to USB is to replace the RS- 232 level-translator with the CP2102. Direct access driver support is available through the Silicon Laboratories USBXpress driver set.

Features of CP2102

• USB 2.0 compliant, full-speed (12 Mbps)

• No external crystal required

• Up to 1024 Bytes of EEPROM or OTP ROM

• User-programmable custom Baud rates

• Supports all modem interface signals

• Baud Rates : up to 2 Mbps

• Industrial temperature –40 to +85 °C

Applications of CP2102

• USB to RS-232 converters

• USB to Dual RS-232 converters

• USB to RS-422/RS-485 converters

• Upgrade of legacy RS-232 devices

• PDA USB interface cable

• Cellular phone USB interface cable

• Barcode readers

• POS terminals

• PC peripherals
