SMBJ12CA SMD TVS DIODE

SMBJ12CA SMD TVS DIODE

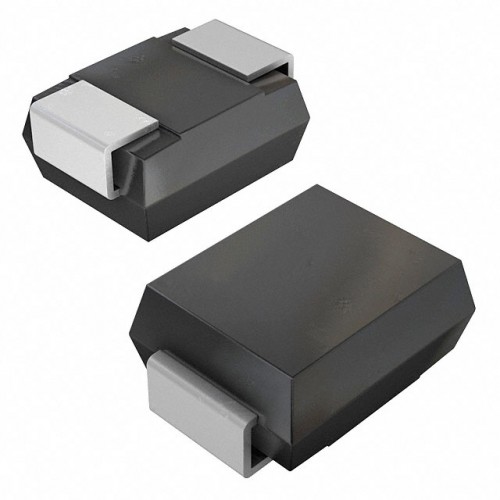

The SMBJ12CA is a 600W bidirectional TVS diode designed to protect sensitive electronic components from voltage transients induced by lightning, ESD, or inductive switching. It clamps transient voltages by diverting surge current safely to ground, protecting devices in automotive, industrial, and telecom applications. With a standoff voltage of 12V, it begins clamping at 13.3V and handles peak pulse currents up to 43.2A. Packaged in a compact DO-214AA (SMB) SMD package, it ensures fast response time and low clamping voltage. It complies with IEC 61000-4-2 (ESD) and IEC 61000-4-5 (surge) standards.

DNA solutions, Nashik has various types of TVS Diode's. Check out our complete collection of TVS Diode's.

• Bidirectional TVS diode for transient protection

• 600W peak pulse power

• Fast response time: <1 picosecond

• Low clamping voltage: 19.9V max

• Glass passivated junction for high reliability

Specifications of SMBJ12CA SMD TVS DIODE

• Reverse Standoff Voltage: 12V

• Clamping Voltage: 19.9V @ Ipp

• Peak Pulse Power: 600W

• Breakdown Voltage: 13.3V (min) to 14.7V (max)

• Peak Pulse Current: 43.2A

• Package: SMB

Applications of SMBJ12CA SMD TVS DIODE

• Automotive electronics

• Industrial control systems

• DC power line protection

• Consumer electronics and I/O ports

Package Includes

      1 x SMBJ12CA SMD TVS DIODE
