• BT169D Triac

Product Images are shown for illustrative purposes only and may differ from actual product.

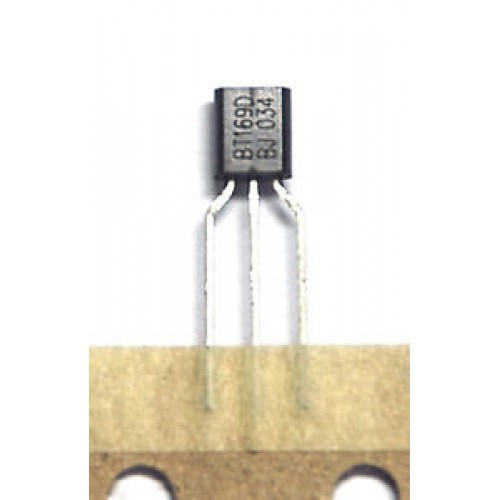

BT169D Triac

  • Stock: 75
  • SKU: 0379 | DAA187
  • Rs. 4.72 (inc GST)
    Rs.4.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

BT169D Triac

BT169 is a Passivated, sensitive gate thyristors in a plastic envelope.

BT169 is a Passivated, sensitive gate thyristors in a plastic envelope intended for use in general purpose switching and phase control applications. These devices are intended to be interfaced directly to microcontrollers, logic integrated circuits and other low power gate trigger circuits.

Features of BT169D

  • Current It av : 500mA
  • Gate Trigger Current Max, Igt : 50mA
  • Gate Trigger Voltage Max Vgt : 500mV
  • Holding Current Max Ih : 5mA
  • On State RMS Current IT(rms) : 800mA
  • Operating Temperature Max : 150°C
  • Peak Non Rep Surge Current Itsm 50Hz : 8A
  • Peak Repetitive Off-State Voltage, Vdrm : 600V

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
