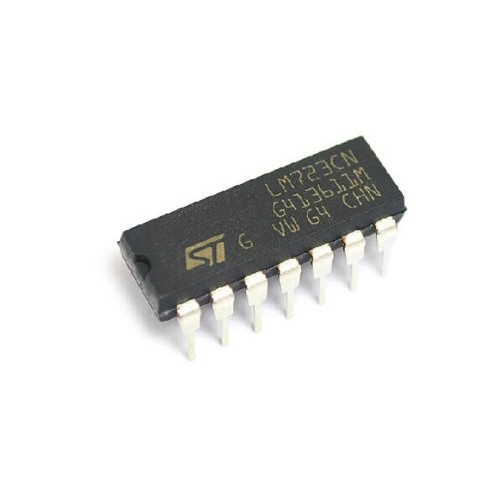

LM723 High Precision Voltage Regulator
- Stock: 4 InStock
- SKU: 0573 | DAA103
25.96 (inc GST)
Rs.22.00 + GST
GST Invoice on all Purchase. So you will be eligible to take input tax credit.
IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.
|Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.|
LM723 HIGH PRECISION VOLTAGE REGULATOR
LM723 is High Precision Voltage Regulator. The LM723 is a monolithic integrated programmable voltage regulator, assembled in 14-lead dual in-line plastic and SO-14 micro package. The circuit provides internal current limiting. When the output current exceeds 150mA an external NPN or PNP pass element may be used. Provisions are made for adjustable current limiting and remote shut-down.
Features of LM723 Voltage Regulator
INPUT VOLTAGE UP TO 40V
OUTPUT VOLTAGE ADJUSTABLE FROM 2 TO 37V
POSITIVE OR NEGATIVE SUPPLY OPERATION
SERIES, SHUNT, SWITCHING OR FLOATING OPERATION
OUTPUT CURRENT TO 150mA WITHOUT EXTERNAL PASS TRANSISTOR
ADJUSTABLE CURRENT LIMITING
VI DC Input Voltage 40V
VI-O Dropout Voltage 40V
IO Output Current 150mA
IREF Current from VREF 15mA
Top Operating Temperature -55 to 125°C
Tstg Storage Temperature -65 to 150°C
TJ Junction Temperature 150°C
