• OB2535 PWM Power Switch

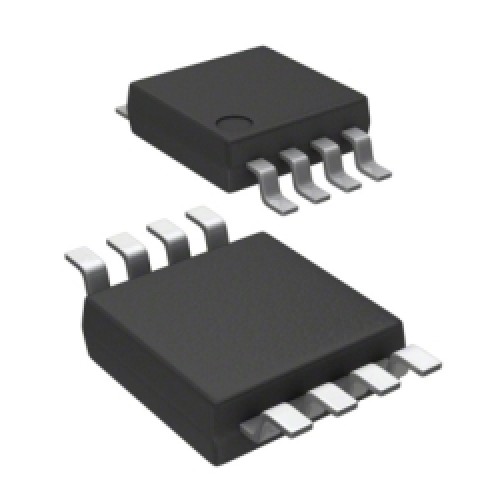

Product Images are shown for illustrative purposes only and may differ from actual product.

OB2535 PWM Power Switch

  • Stock: Out Of Stock
  • Brand: ON Bright
  • SKU: 1205 | DAA651
  • Rs. 69.62 (inc GST)
    Rs.59.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

OB2535 PWM Power Switch

OB2535 is a high performance offline PWM Power switch for low power AC/DC charger and adapter applications.

It can achieve ±5% precision constant voltage (CV) and high precision constant current (CC). It operates in primary-side sensing and regulation. Consequently, opto-coupler and TL431 could be eliminated.

Features of OB2535

  • ±5% constant voltage regulation at universal AC input

  • Primary-side sensing and regulation without TL431 and opto-coupler

  • Programmable CV and CC regulation

  • Adjustable constant current and output power setting

  • Built-in primary winding inductance compensation

  • Programmable cable drop compensation

  • Power on soft-start

  • Built-in leading edge blanking (LEB)

  • Cycle-by-Cycle current limiting

  • VDD under voltage lockout with hysteresis (UVLO)

  • VDD OVP

  • VDD clamp

  • Available in SOP8 packages, RoHS compliant

Applications of OB2535

  • CC/CV Battery Charger

  • Cell/Cordless Phone Charger

  • Digital Camera Charger

  • PDA Charger

  • Small Power Adapter

  • Auxiliary Power for PC, TV etc.

  • Linear Regulator/RCC Replacement

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
