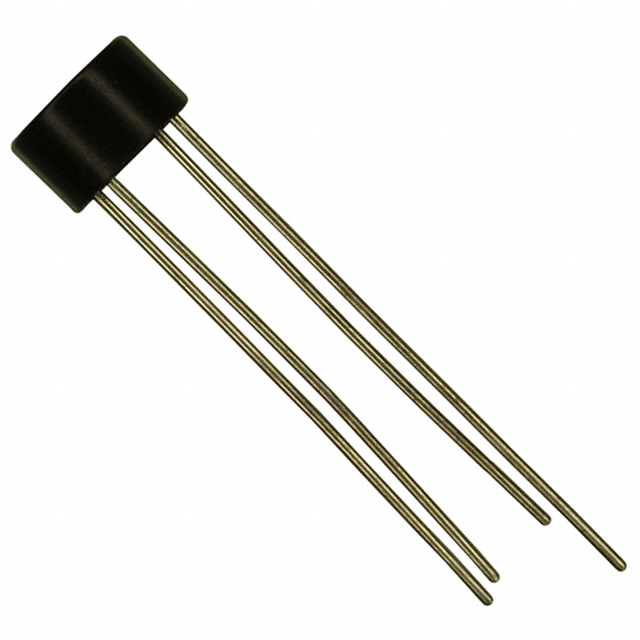

W06 Single Phase Silicon Bridge Rectifier

W06 Single Phase Silicon Bridge Rectifier

W06 Bridge Rectifier for PCB with 1000V DC Blocking Voltage, 50A Surge Rating, and High Temperature Soldering.

The W06 Single Phase Silicon Bridge Rectifier is designed for efficient power conversion in printed circuit boards. It features a peak repetitive reverse voltage of 1000V and a maximum DC blocking voltage of 1000V, making it suitable for various applications. This rectifier also ensures high reliability with a surge overload rating of 50A peak and can withstand operating temperatures from -55 to +125 °C.

Engineered for durability, the W06 Single Phase Silicon Bridge Rectifier has plated leads that are solderable and complies with MIL-STD 202E standards. Its UL-94 Class V-O recognized flame retardant epoxy case enhances safety. This product is versatile, with a mounting position that allows installation in any orientation, making it ideal for a range of electronic projects.

With its robust specifications and reliable performance, the W06 Single Phase Silicon Bridge Rectifier is perfect for applications in power supplies and motor drives. Explore how this rectifier can enhance your electronic designs and achieve better efficiency in your projects.

Explore the reliability of Diodes & Transistors at DNA. The W06 Single Phase Silicon Bridge Rectifier is crucial for efficient power management. Check other Diodes & Transistors that we have in stock.

Are you searching for specific electronic components? At DNA, we support Indian electronics buyers with import options for hard-to-find parts. We also offer a range of related items like Microcontrollers, IGBTs, and DC to DC Converter Modules. Contact Us.

Features of W06 Single Phase Silicon Bridge Rectifier

• Surge overload rating: 50 A peak
• High case dielectric strength
• Operating temperature range: -55 to +125 °C

Specification of W06 Single Phase Silicon Bridge Rectifier

• Peak Repetitive Reverse Voltage VRRM: 1000 V
• Maximum DC Blocking Voltage VDC: 1000 V
• Maximum RMS Voltage VRMS: 700 V
• Storage Temperature TSTG: -55 to +150 °C

Applications of W06 Single Phase Silicon Bridge Rectifier

• Power supplies
• Motor drives
• Electronic project circuits

Package Includes

• 1 X W06 Single Phase Silicon Bridge Rectifier
