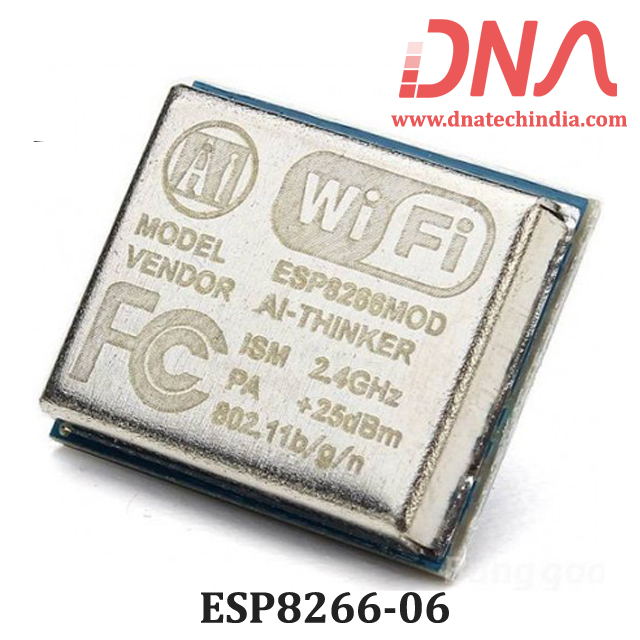

ESP8266-06 WiFi Serial Transceiver Module

ESP8266-06 encapsulation mode is diversiform, antenna can support board PCB, IPEX interfaces and stamp hole three forms.

ESP8266 UART is an ultra-low power consumption - WiFi pass-through module, highly competitive in the industry of packaging size and low power consumption technology, designed for mobile devices and Internet application, the user's physical devices can be connected to a wi-fi, to carry on the Internet or LAN communications, realize networking.

ESP8266 can be widely used in smart grid, smart transportation, intelligent furniture, handheld devices, industrial control, etc

DNA Solutions has large collection of various types of Transceiver Module. Check our complete collection of Transceiver Module

Features of ESP8266-06

• Size : 16*13.2*3mm

• Wireless standards : 802.11b/g/n

• Operating temperature : -40~125℃

• Network Protocol : IPv4/TCP/UDP/FTP/HTTP

• Hardware interface : UART/HSPI/PWM/GPIO/I2S

• Voltage : 3.0~3.6V

• Frequency range : 2.4GHz-2.5GHz

• Antenna Form : Extra-position:Stamps hole interface

• Extra-position : I-PEX connector,SMA connector

• Built-in : PCB antenna

Software Parameters

• WLAN Network Mode station/softAP/SoftAP+station

• Security Mechanism WPA/WPA2

• Encryption Type WEP/TKIP/AES

• Upgrade Firmware Local serial burn

• Networking Protocol IPv4,TCP/UDP/HTTP/FTP

Applications of ESP8266-06

• Latest version

• Serial CH340 turn wi-fi;

• Industrial passthrough DTU;

• Wi-fi remote monitor/control;

• Toys field;

• Color LED control;

• Fire control, security intelligent integration management;

• Smart card terminals, wireless POS machine, wi-fi camera, handheld devices, etc
