FE DRI 962L IGBT DRIVER MODULE

FE DRI 962L IGBT DRIVER MODULE

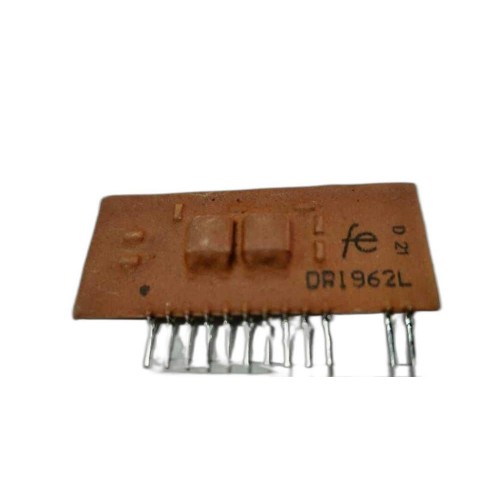

The QC962-8A is a hybrid integrated IGBT driver module engineered to provide efficient and safe control of IGBT devices. It features built-in electrical isolation between input and output through an opto-coupler, ensuring signal integrity and safety. The module includes a desaturation detection circuit for short-circuit protection, offering a fault signal output when protection is activated.

DNA solutions, Nashik has various types of Module's. Check out our complete collection of Module's.

• TTL Compatible Input Interface: Ensures easy integration with standard logic circuits.

• High CMRR Opto-Coupler: Provides excellent noise immunity with a typical Common Mode Rejection Ratio (CMRR) of 30kV/μs.

• Two Supply Drive Topology: Allows for flexible power supply configurations.

• Soft IGBT Turn-Off: Reduces voltage overshoot and stress on the IGBT during turn-off.

• High Switching Frequency: Operates efficiently up to 20kHz.

• Electrical Isolation: Isolation voltage between input and output is rated at 3750 VRMS/min.

Specifications of FE DRI 962L IGBT DRIVER MODULE

• Input Interface: TTL compatible.

• Isolation Voltage: 3750 VRMS/min between input and output.

• Switching Frequency: Up to 20kHz.

• CMRR: Typical 30kV/μs, Minimum 15kV/μs.

• Protection Features: Desaturation detection with fault signal output.

• Compatibility: Pin-compatible with M57962AL

Applications of FE DRI 962L IGBT DRIVER MODULE

• General-Purpose Inverters

• Uninterruptible Power Supplies

• AC Servo Systems

• Welding Machines

Package Includes

      1 x FE DRI 962L IGBT DRIVER MODULE
