TM-619H-2 4 Pin Digital Timer


Write a review | 2 reviews

  • Stock: 1

    Availability: InStock priceValidUntil: 2026-11-03

  • SKU: 1779 | DAE077

Availability: InStock priceValidUntil: 2026-11-03

  • Rs. 674.96 (inc GST)
    Rs.572.00 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

TM-619H-2 4 Pin Digital Timer

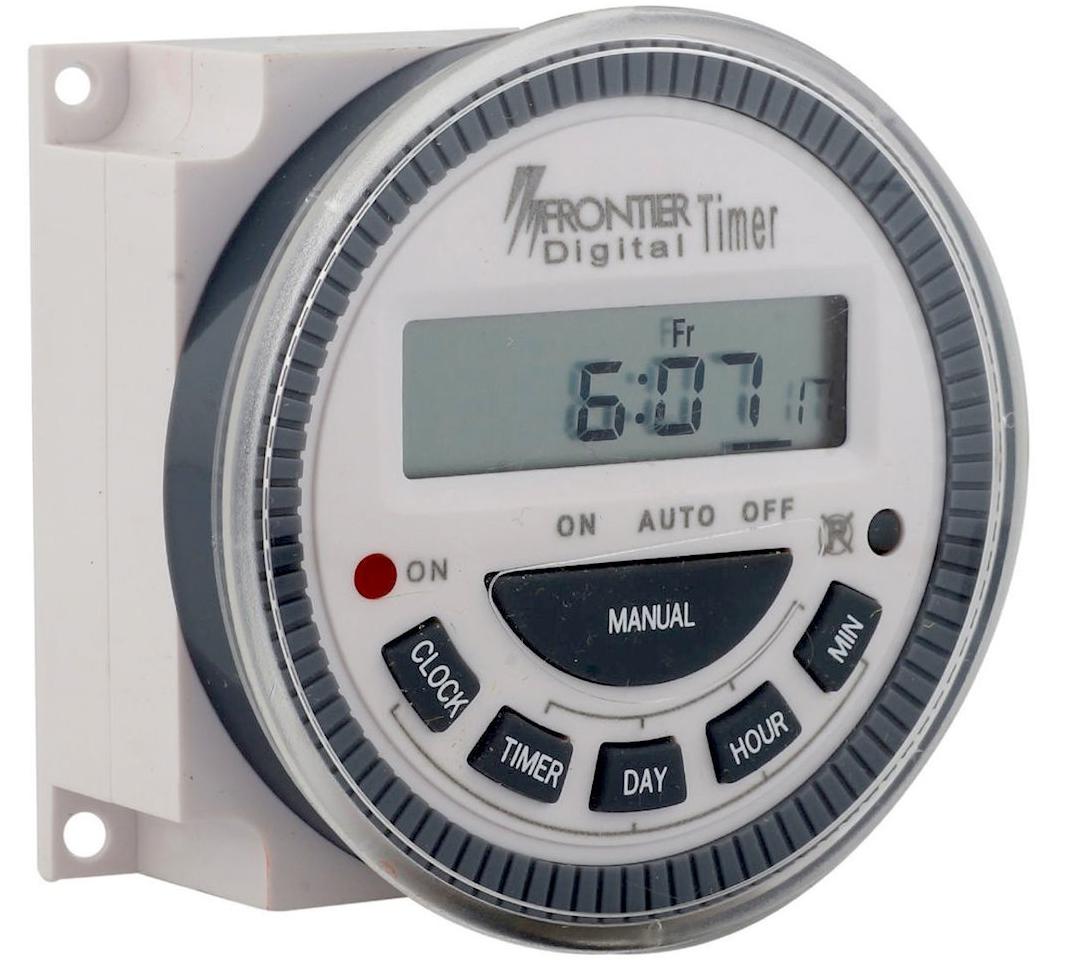

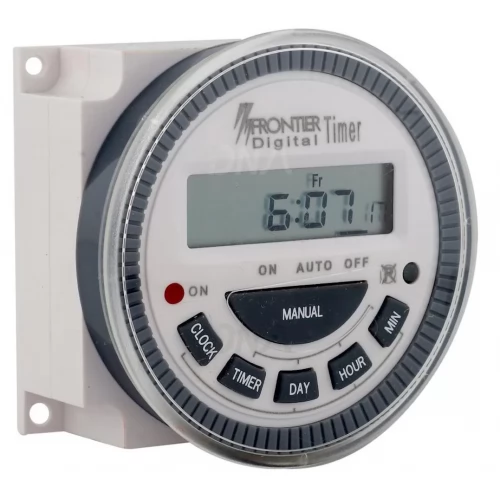

Frontier TM-619-H2 4 pin Digital Programmable Timer

This is a low cost 4 pin programmable digital timer. TH-619-H2 timer provides 15-combination of Daily-Programs leads great convenience to users, in use of Timer on programming it to their demands to desired DAYS of WEEK. It had a replacable CR2032 battery which provides the backup for the on-board RTC. LCD is provided to display the current time and set time.

This timer is perfect for various applications like Aquarium Automation, Street Lights ON/OFF, Porch lights ON/OFF, Pump ON/OFF, water heater, staircase lights, water coolers, water dispensers, Advertising lights or any where you require to Turn ON/OFF lights or devices at specific timings and save valuable human time and energy

In cases when the product is not starting/dead, Press the black button on the front right side of the product. It will force start the product.

Specifications Of Frontier TM619H2 Digital Programmable Timer 4 pin

  • Input voltage : 200 to 250 VAC Frequency 50/60Hz
  • Contact : Single Pole - Single Throw 16 Ampere, 250 V AC or 20 A, 30V DC
  • Running Accuracy : ± 1 second / day at 20°C
  • Minimum Time Setting : 1 minute
  • Memory Back up : Lithium battery inside the timer CR2032
  • Backing Type : Replaceable battery
  • Brand Name : Frontier
  • Colour :  White and Grey

  • Item Weight : 80.0  grams
  • Model Number :  Frontier Digital Timer programmable
  • Part Number : TM619H2

Feature Of Frontier TM619H2 4 pinDigital Timer Programmable

  • 17 ON / OFF programs can be set per day
  • Option to select Day/Days of the week on which the programmed functions to be performed
  • LED power indicator
  • Manual over ride switch
  • LCD on screen displays ON and OFF switching status
  • With Lithium battery inside for memory back up; CR2032 User Replaceable
  • With daily weekly and impulse programs
  • Easy Connection Settings

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
