• ZMPT107 AC Voltage Transformer Sensor

Product Images are shown for illustrative purposes only and may differ from actual product.

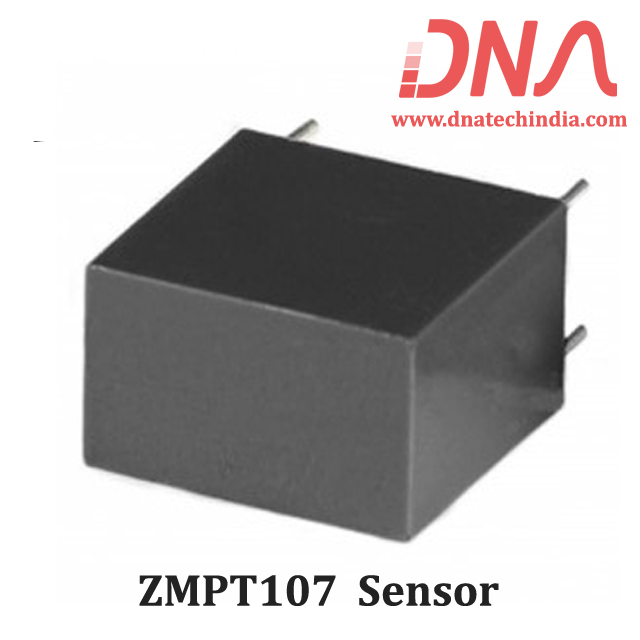

ZMPT107 AC Voltage Transformer Sensor

  • Stock: 1000
  • SKU: 2528 | DAC714
  • Rs. 70.80 (inc GST)
    Rs.60.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

ZMPT107 Micro AC Voltage Transformer Sensor

ZMPT107 Micro Voltage Transformer Potential Transformer

ZMPT107 AC Voltage Sensor or transformer is the best PT ( potential transformer ) where we need to measure the accurate AC voltage with a voltage transformer. This is best choice to measure the AC voltage using Arduino, ESP8266, Raspberry Pi like an opensource platform.

ZMPT107 is a compact AC voltage sensor that you can use to monitor mains AC voltage.The ZMPT107 provides isolation and is very compact in size and can be used to measure AC voltage upto 1000 volts. The main advantage is its compact size and can be directly mounted on PCB.Instead of ZMPT107 you can also use ZMPT101B or for testing purpose you can use ZMPT101B AC voltage module.

We have various types of Load CellsForce SensorFlex Sensor and Pressure Sensor. Check our complete collection of Weigh Sensor and Load cell.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Specification of ZMPT107 Micro Voltage Transformer Sensor


  • Rated input current: 2 mA
  • Rated output current: 2 mA
  • Linear range: 0~1000 Volts 0~3mA
  • Isolation withstand voltage: 3000 Volts
  • Turns Ratio: 1000:1000
  • Measurement accuracy Class :0.2
  • Linearity: 0.1%
  • Rated Burdon :<=200Ohm
  • Operating Frequency: 50-60Hz
  • DC coil Resistance: 100 @ 20 deg Cel

Applications ZMPT107 Voltage Transducer

  • Metering (electrical energy meters)
  • AC Voltage measurement
  • Sensing Overload Current
  • Ground fault detection
  • Household electrical equipment
  • Industrial apparatuses
  • Electrical testing equipment and relay protection

Related Links

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
