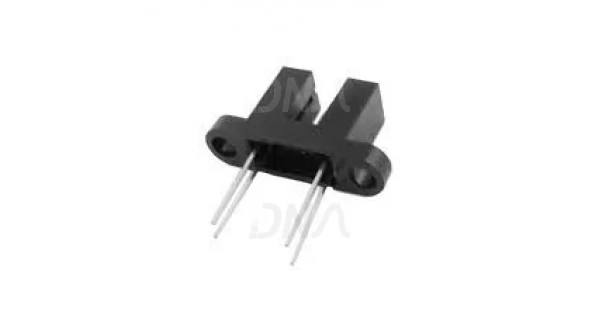

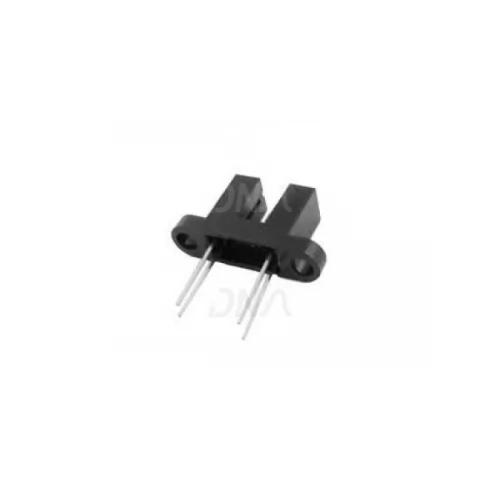

HY860D Photo Interrupter

HY860D Photo Interrupter Features a built-in bracket for easy mounting.

Consisted of an infrared emitter and a photo-transistor, is located face-to-face on the optical axes in a leaded package. During operation, output photo-transistor switch from ON state to OFF state when object is inserted into gap between emitter and sensor. HY860D is used for object detection and automatic counting, such as printer, scanner, copy machine, facsimile machine and vending machine, etc.

Features of HY860D Photo Interrupter

• Output Type : Photo Transistor

• Peak Emission Wavelength : 940nm

• IR Diode Forward Current : 50mA

• IR Diode Reverse Voltage : 5V

• Transistor Power Dissipation : 75mW

• Transistor Collector Current : 20mA

• Photo Transistor Collector-emitter Voltage : 30V

• Photo Transistor Emitter-collector Voltage : 5V

• Diode Power Dissipation : 100mW

• Operating Temperature Range : -55~100 Celsius Degree

• Number of Pins : 4

• Slot Width : 4.2mm/11/64''

• Slot Depth : 8mm/0.3''

• Pin Length : 11mm/0.4''

• Pitch : 9mm/0.35'', 2.5mm/0.1''

• Hole Dia. : 3mm/0.12''

• Total Size : 22 x 22 x 6mm/0.9'' x 0.9'' x 0.2''(L*W*H)

• Material : Plastic, Metal

• Color : Black
