• GROW K202 Low Power Consumption Ring Fingerprint Access Control Board Module

Product Images are shown for illustrative purposes only and may differ from actual product.

GROW K202 Low Power Consumption Ring Fingerprint Access Control Board Module

  • Stock: 5
  • SKU: 3758 | DAG071
  • Rs. 2,258.52 (inc GST)
    Rs.1,914.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

GROW K202 Low Power Consumption Ring Fingerprint Access Control Board Module

GROW K202 Low Power Consumption Ring Fingerprint Access Control Board Module

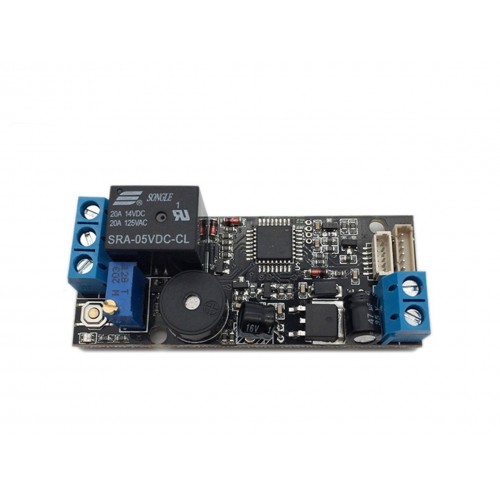

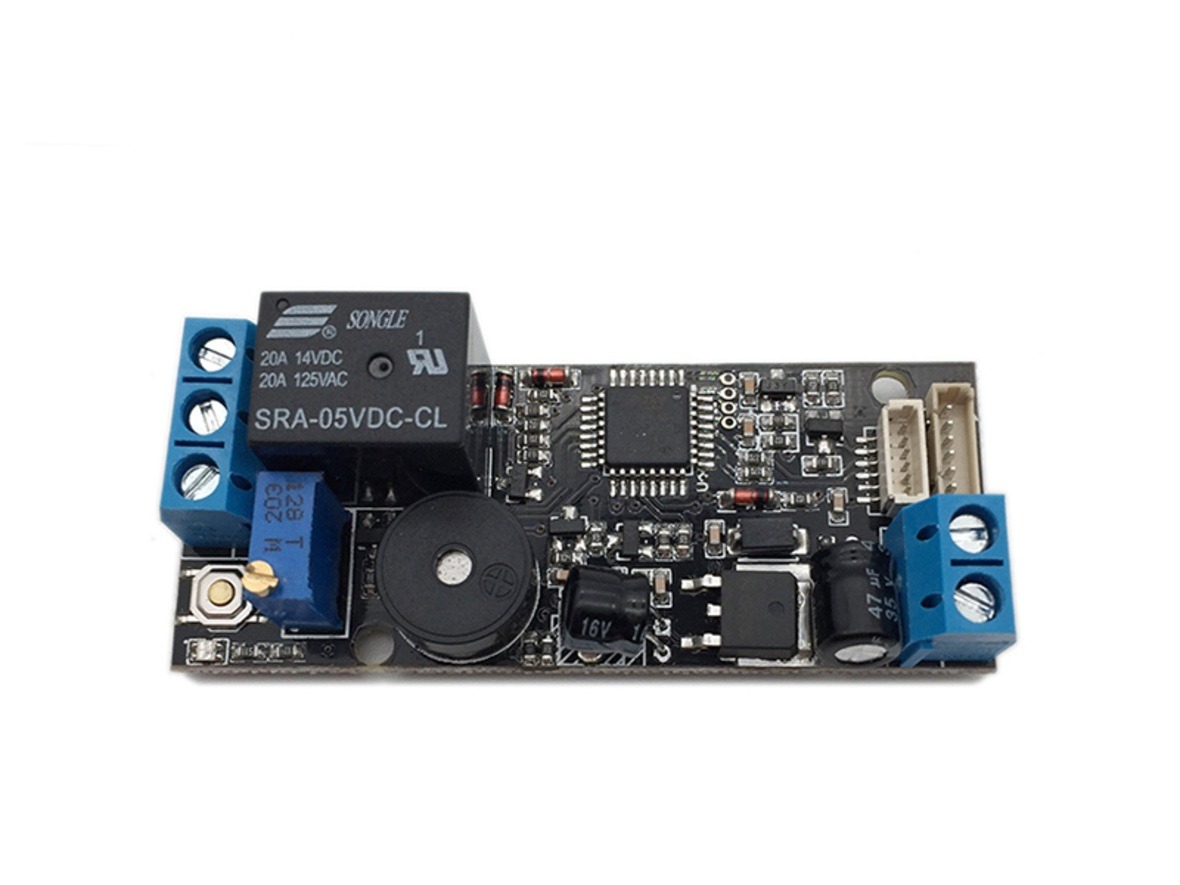

This Grow KL202 Low Power Consumption Ring Fingerprint Access Control Board is an all-in-one control board with the onboard STM8 microcontroller. This module can act as a standalone system for the fingerprint access control system. The board comes with an onboard relay which is activated by the microcontroller when the fingerprint is detected. The activation time of the relay can be controlled via a multiturn potentiometer, which can be adjusted through 0.5 sec -13 sec.

DNA solutions, Nashik has various types of Module's. Check out our complete collection of Module's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of GROW K202 Low Power Consumption Ring Fingerprint Access Control Board Module

  • Set Relay Time : Rotate K2 to set the closing time of the relay from 0.5 to 13 seconds. The relay is contact output, switch signal, no voltage output.
  • SET Button : Press SET button shortly, blue indicator light flash fast and system in register state, put the finger on fingerprint collection area, fingerprint register successful when hearing music. Fingerprint can be registered continuously when system in register state; if no need adding fingerprint more, waiting a few seconds.
  • Back to factory default : Press SET button until hear “Di” long beep and music, means initialization operation successful.
  • Usage : Press the finger, the relay closes after the fingerprint passes, and the closing time is determined by K2.

Specification of GROW K202 Low Power Consumption Ring Fingerprint Access Control Board Module

  • P1: Power supply: DC12V
  • P2: MX 1.0mm space 6 Pin Fingerprint Module(can connect R502,R502-A,R503)
  • P3: MX 1.25mm space 6 Pin Fingerprint Module(can connect R300,R301T,R303,R303T,R305,R306,R307,R501)
  • Standby current: 15uA
  • Fingerprint capacity: 120 pieces
  • Size: 64.4*25.4mm
  • Output: Relay(Max. current:10A)

    Package Includes

    1 x GROW K202 Low Power Consumption Ring Fingerprint Access Control Board Module

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
