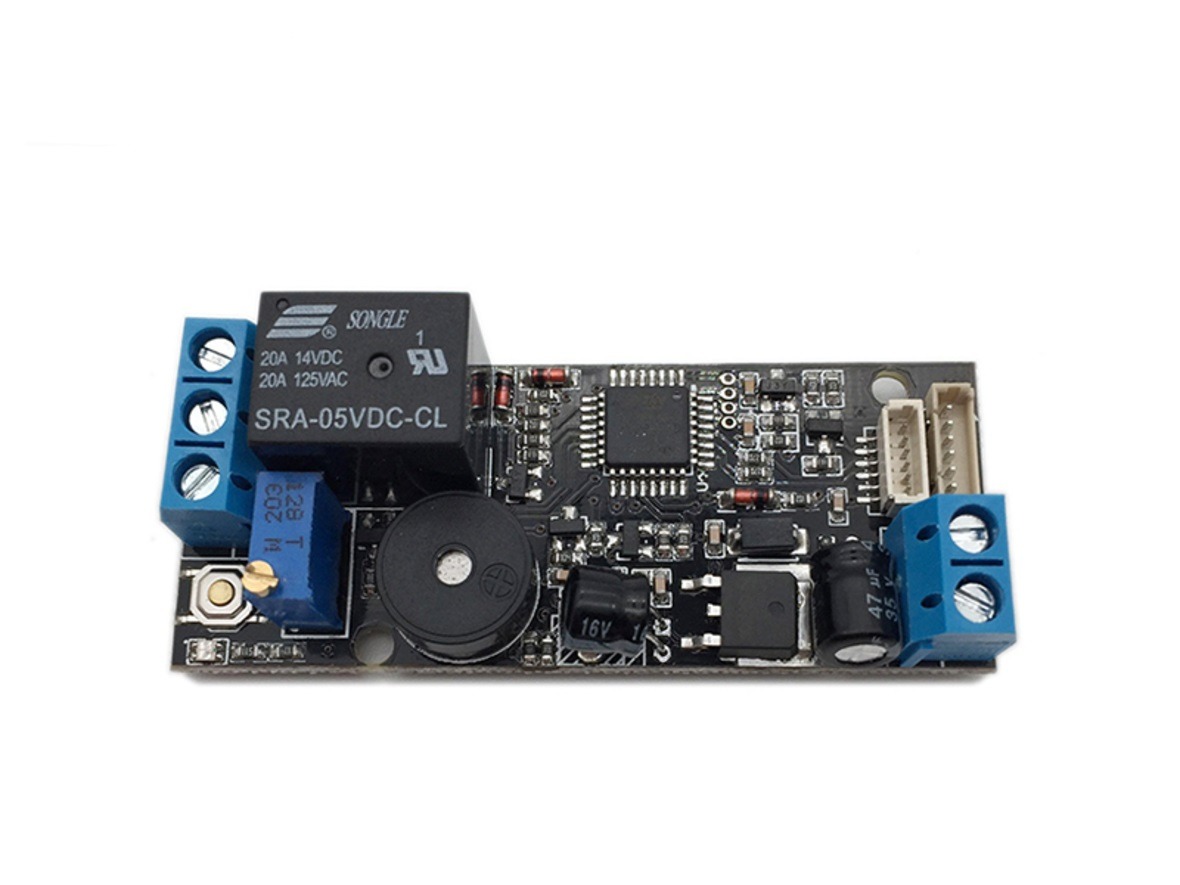

GROW K202 Low Power Consumption Ring Fingerprint Access Control Board Module

This Grow KL202 Low Power Consumption Ring Fingerprint Access Control Board is an all-in-one control board with the onboard STM8 microcontroller. This module can act as a standalone system for the fingerprint access control system. The board comes with an onboard relay which is activated by the microcontroller when the fingerprint is detected. The activation time of the relay can be controlled via a multiturn potentiometer, which can be adjusted through 0.5 sec -13 sec.

DNA solutions, Nashik has various types of Module's. Check out our complete collection of Module's.

• Set Relay Time : Rotate K2 to set the closing time of the relay from 0.5 to 13 seconds. The relay is contact output, switch signal, no voltage output.


• SET Button : Press SET button shortly, blue indicator light flash fast and system in register state, put the finger on fingerprint collection area, fingerprint register successful when hearing music. Fingerprint can be registered continuously when system in register state; if no need adding fingerprint more, waiting a few seconds.


• Back to factory default : Press SET button until hear “Di” long beep and music, means initialization operation successful.


• Usage : Press the finger, the relay closes after the fingerprint passes, and the closing time is determined by K2.

Specification of GROW K202 Low Power Consumption Ring Fingerprint Access Control Board Module

• P1: Power supply: DC12V

• P2: MX 1.0mm space 6 Pin Fingerprint Module(can connect R502,R502-A,R503)

• P3: MX 1.25mm space 6 Pin Fingerprint Module(can connect R300,R301T,R303,R303T,R305,R306,R307,R501)

• Standby current: 15uA

• Fingerprint capacity: 120 pieces

• Size: 64.4*25.4mm

• Output: Relay(Max. current:10A)

Package Includes

1 x GROW K202 Low Power Consumption Ring Fingerprint Access Control Board Module
