  • Leone SC5-S-DC6V 6 Volt Relay

Product Images are shown for illustrative purposes only and may differ from actual product.

Leone SC5-S-DC6V 6 Volt Relay


Write a review | 0 reviews

  • Stock: Out Of Stock
  • Brand: Leone
  • SKU: 2307 | DAB243

Availability: NotInStock priceValidUntil: 2025-09-27

  • Rs. 24.78 (inc GST)
    Rs.21.00 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

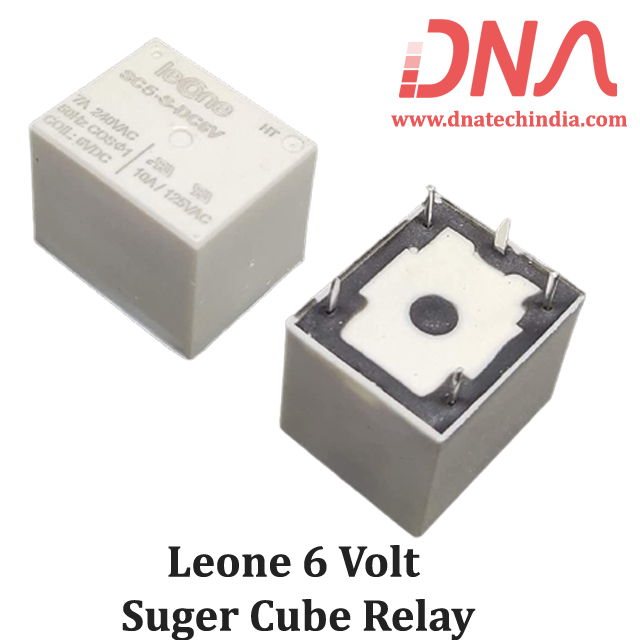

SC5-S-DC6V Leone 6 Volt Cube Relay

Leone 6 Volt 7 Ampere SugarCube Relay SC5-S-DC6V

This is a high quality Leone make 6 Volt sugarcube relay. SC5-S-DC6V PCB mount sugarcube relay can be used for switching High voltage 230 Volt devices and has current rating upto 7 ampere.

DNA Solutions has various types of Relay, Relay Socket and SSR. Check out our complete collection of Relay, Relay Socket and SSR.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of Leone SC5-S-DC6V 6 Volt Relay

  • Dimension( L * W * H (mm)) : 19 * 15.5 * 15.5
  • Terminal Type : PCB
  • Weight :10.5 gm

Contact INFO for Leone SC5-S-DC6V 6 Volt Relay

  • Contact Form : 1C
  • Contact Material : Ag Alloy
  • Contact Capacity : 7A @ 300VAC, 10A @ 28VDC

Coil Data for Leone SC5-S-DC6V 6 Volt Relay

  • Coil Voltage ( DC) 6 Volt DC
  • Coil Power Consumption 0.36 Watt
  • Coil Resistance 400 ohm

General Data

  • Dielectric Strength : 750 VAC @ 50 Hz / Min (Between Open Contacts)/1500 VAC @ 50 Hz / Min ( Between Coil & Contacts)
  • Insulation Resistance : 100MΩ
  • Electrical Life : 1 million
  • Mechanical Life : 1 million
  • Operating Temperature : - 40 °C ~ + 70°C

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
