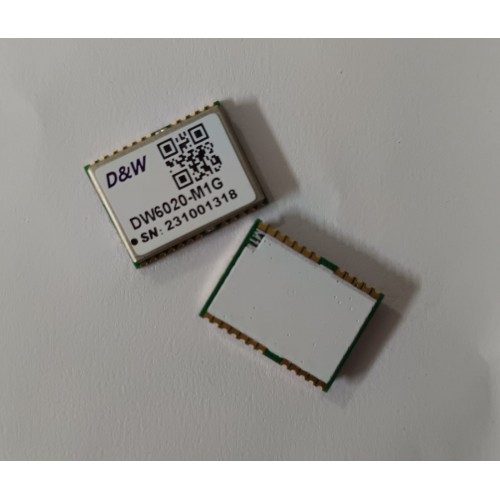

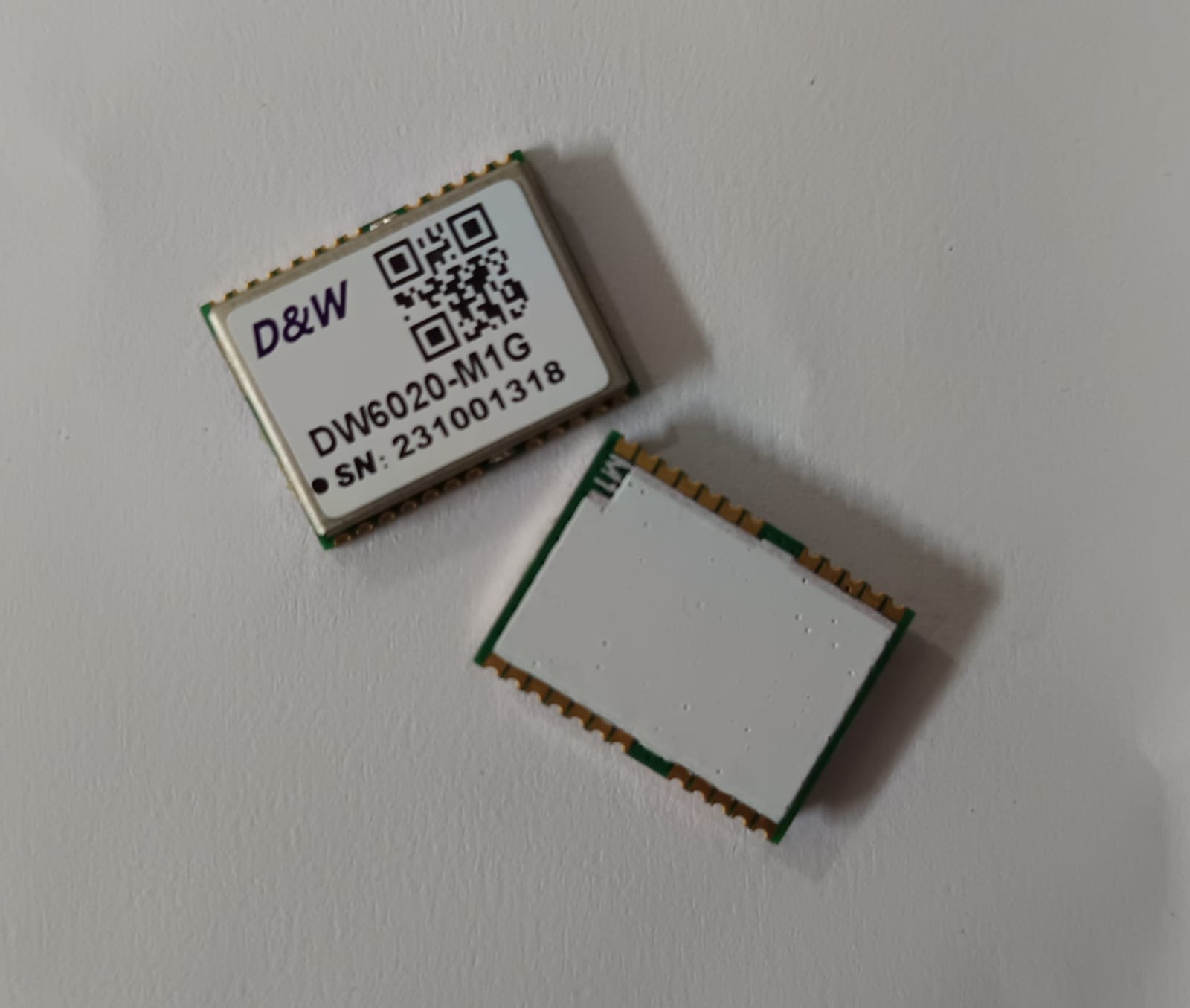

DW6020 Location Tracking personal Navigation Devices GPS Chipset

DW6020 Location Tracking personal Navigation Devices GPS Chipset

The DW6020 GPS chipset is a low-power, high-performance solution tailored for global positioning systems (GPS). It supports satellite-based navigation by receiving signals from GPS satellites and calculating precise geographic positions (latitude, longitude, and altitude). The chipset is designed with enhanced sensitivity and low power consumption, making it suitable for portable devices. The DW6020 features an integrated RF front-end and baseband processor, simplifying system design and reducing external component count.

DNA solutions, Nashik has various types of Chipset's. Check out our complete collection of Chipset's.

• High Sensitivity: The chipset offers excellent sensitivity, enabling it to acquire GPS signals even in challenging environments such as urban canyons or areas with weak signal conditions


• Low Power Consumption: Optimized for battery-powered devices, the DW6020 operates with low power consumption, extending the battery life of handheld devices, mobile phones, and wearables.


• Fast Time to First Fix (TTFF): The chipset supports rapid acquisition of GPS signals, allowing it to quickly compute the initial position when powered on.


• High Accuracy: It provides accurate positioning with a precision of up to a few meters, suitable for navigation and mapping applications.


• Multi-path Resistance: The chipset includes signal processing features to mitigate errors due to multi-path reflections, improving GPS accuracy in environments with signal reflections.


Specifications of DW6020 Location Tracking personal Navigation Devices GPS Chipset

• Frequency: L1 Band (1575.42 MHz)


• Power Supply: Low operating voltage, typically between 1.8V to 3.3V


• Position Accuracy: Typically 2.5 meters CEP (Circular Error Probability)


• Velocity Accuracy: ±0.1 meters/second


• Interface: Standard serial communication interfaces like UART, SPI, or I2C


• Operating Temperature: -40°C to +85°C


• Power Consumption: Ultra-low power modes available, typically consuming less than 50mW


Package Includes

• 1 x DW6020 Location Tracking personal Navigation Devices GPS Chipset
