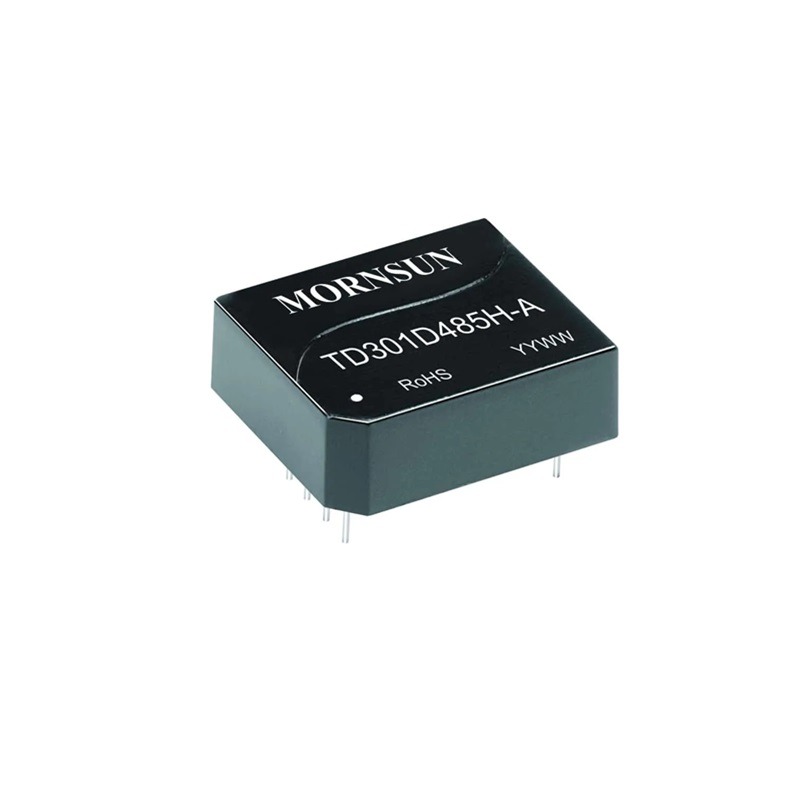

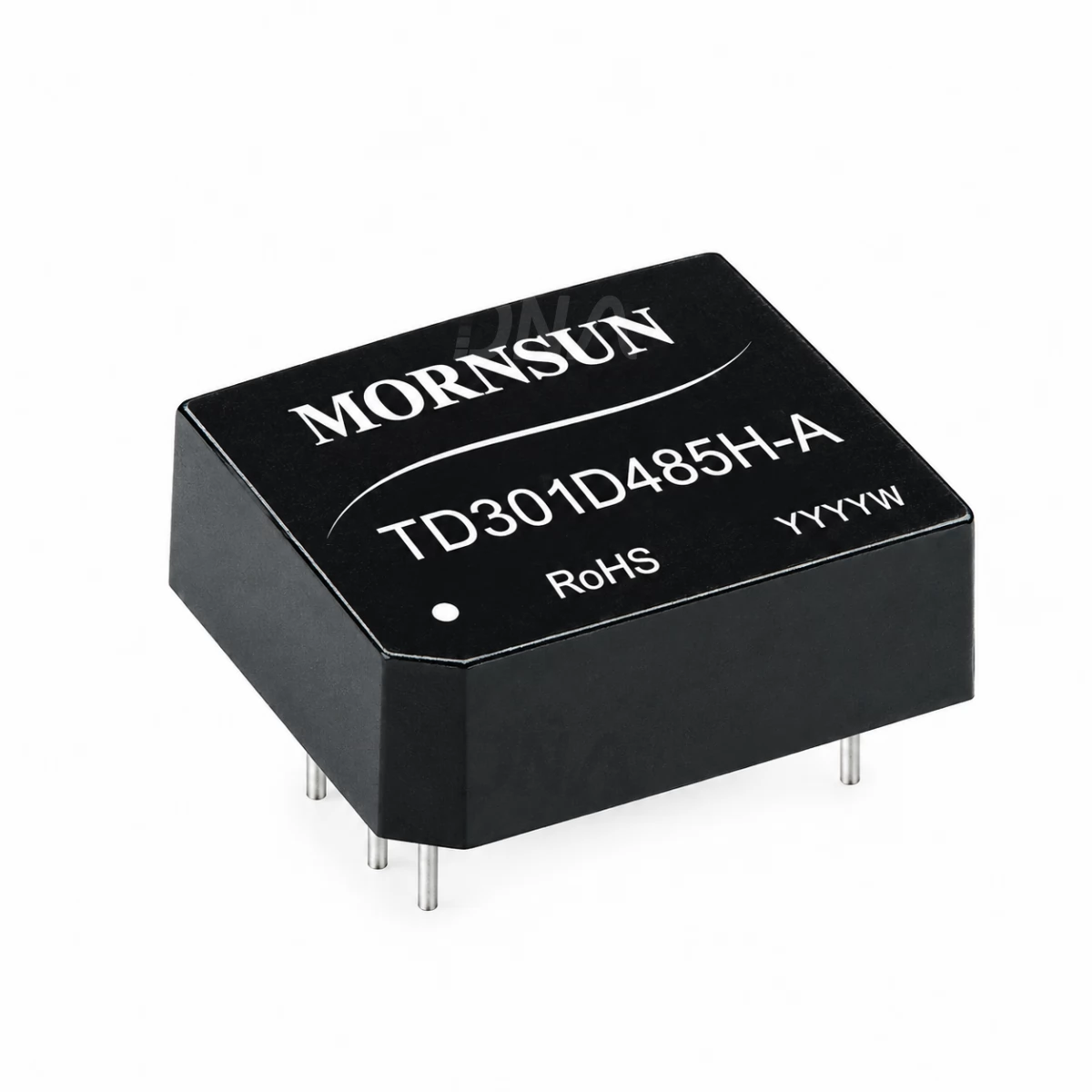

Mornsun TD301D485H-A Isolated RS485 Transceiver Module

  • Stock: 10

    Availability: InStock priceValidUntil: 2026-12-17

  • Brand: Mornsun
  • SKU: 3890 | DAG623

Availability: InStock priceValidUntil: 2026-12-17

  • Rs. 658.44 (inc GST)
    Rs.558.00 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Mornsun TD301D485H-A Isolated RS485 Transceiver Module

TD301D485H-A isolated RS485 transceiver module with 3.3 V UART, up to 115200 bps data rate and support for 32 bus nodes.

The Mornsun TD301D485H-A is an isolated RS485 transceiver module that converts logic-level signals to RS485 differential signals. It works with a 3.3 V UART and supports data rates up to 115200 bps. An integrated isolated DC-DC converter supplies the transceiver.
The module handles automatic half-duplex transmission, so the host does not need a separate signal to switch between sending and receiving. Two-terminal isolation separates the input and output sides. Bus ESD protection adds a layer of defense at the interface.
Use this module for RS485 network connections or to add isolated RS485 communication to embedded equipment. It supports up to 32 nodes on one bus.
DNA stocks Mornsun communication modules for electronics projects and equipment design. Browse our Communication Modules range to find parts for your build. Check other Communication Modules that we have in stock
If you cannot find the part you need, contact DNA for import support and retail or bulk orders. We can also help with Power Supply, Nextion Display, Microcontroller, Sensor, Super Capacitor and SMPS parts. Contact Us

Features of Mornsun TD301D485H-A Isolated RS485 Transceiver Module

  • Combines an isolated DC-DC converter and RS485 transceiver
  • Switches between transmit and receive without an external control signal
  • Provides isolation between input and output
  • Includes ESD protection on the bus interface
  • Has pull-up and pull-down resistors on the A and B bus channels

Specifications of Mornsun TD301D485H-A Isolated RS485 Transceiver Module

  • Power supply input voltage: 3.17–3.45 VDC (3.3 V nominal)
  • UART interface: 3.3 V compatible only
  • Maximum transmission rate: 115200 bps
  • Transceiver mode: Half duplex, automatic transmission
  • Maximum bus nodes: 32 on one bus
  • Isolation voltage: 2.5 kVDC for a 1-minute electric strength test, leakage current below 5 mA
  • Operating temperature: −40°C to +85°C
  • Package: DIP10

Applications of Mornsun TD301D485H-A Isolated RS485 Transceiver Module

  • RS485 network connections
  • Embedding in user end equipment

Related Links for Mornsun TD301D485H-A Isolated RS485 Transceiver Module

Package Includes

  • 1 X Mornsun TD301D485H-A Isolated RS485 Transceiver Module
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
