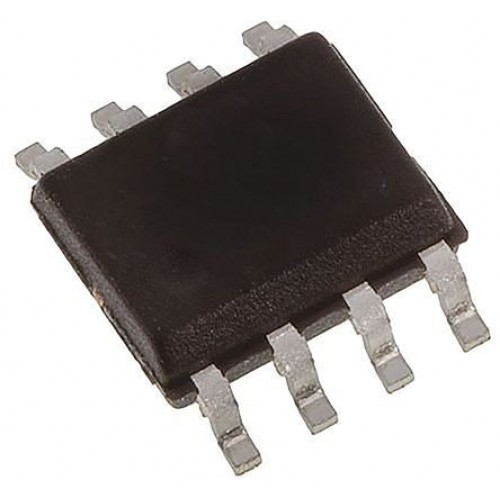

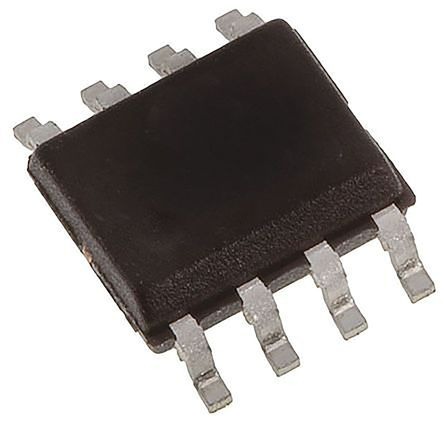

TC7660 SE Charge Pump DC-to-DC Voltage Converter IC

TC7660 SE Charge Pump DC-to-DC Voltage Converter IC

TC7660 SE Charge Pump IC converts +1.5V to -10V with 99.9% efficiency and low power consumption.

The TC7660 SE Charge Pump DC-to-DC Voltage Converter IC efficiently converts input voltages from +1.5V to +10V to corresponding negative outputs of -1.5V to -10V, using just two low-cost capacitors. This design eliminates the need for inductors, reducing costs and interference. With a nominal frequency of 10 kHz, it caters to various applications requiring stable negative voltage supplies.

This TC7660 SE Charge Pump DC-to-DC Voltage Converter IC boasts an impressive efficiency of 99.9% and a low power consumption of only 80 µA at 5V input, making it ideal for compact and efficient electronic designs. It is available in multiple package options, ensuring compatibility with different circuit layouts. The improved ESD protection of 3 kV HBM enhances reliability in sensitive applications.

Common applications include RS-232 negative power supply and voltage multiplication, making the TC7660 SE Charge Pump DC-to-DC Voltage Converter IC a versatile component in data acquisition systems and instrumentation. This IC is perfect for engineers and hobbyists looking for reliable voltage conversion solutions.

Explore the efficiency of DNA's DC to DC Converter Modules. The TC7660 SE Charge Pump DC-to-DC Voltage Converter IC by DNA is perfect for your voltage conversion needs. Check other "DC to DC Converter Modules" that we have in stock.

At DNA, we cater to Indian electronics buyers. If you need specific components like DC to DC Converter ICs, HMI Displays, or Microcontrollers, reach out to us. We can import parts not found in stock and support both retail and bulk orders. Contact Us

Features of TC7660 SE Charge Pump DC-to-DC Voltage Converter IC

• Wide Input Voltage Range: +1.5V to +10V
• Efficient Voltage Conversion (99.9%, typ)
• Excellent Power Efficiency (98%, typ)
• Low Power Consumption: 80 µA (typ) @ VIN = 5V
• Low Cost and Easy to Use - Only Two External Capacitors Required
• Available in 8-Pin Small Outline (SOIC), 8-Pin PDIP and 8-Pin CERDIP Packages
• Improved ESD Protection (3 kV HBM)

Specification of TC7660 SE Charge Pump DC-to-DC Voltage Converter IC

• Input Voltage: +1.5V to +10V
• Output Voltage: -1.5V to -10V
• Frequency: 10 kHz
• Power Consumption: 80 µA
• Package Types: 8-Pin PDIP, 8-Pin SOIC, 8-Pin CERDIP

Applications of TC7660 SE Charge Pump DC-to-DC Voltage Converter IC

• RS-232 Negative Power Supply
• Simple Conversion of +5V to ±5V Supplies
• Voltage Multiplication
• Negative Supplies for Data Acquisition Systems
• Instrumentation

Package Includes

• 1 X TC7660 SE Charge Pump DC-to-DC Voltage Converter IC
