  • LPR6235 752 Mini Step Up

Product Images are shown for illustrative purposes only and may differ from actual product.

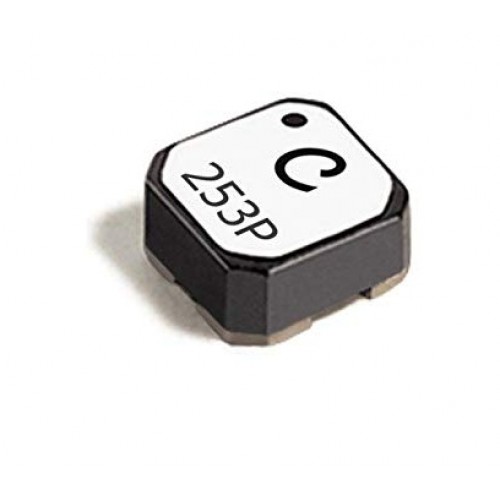

LPR6235 752 Mini Step Up

  • Stock: 20
  • Brand: Coilcraft
  • SKU: 2272 | DAC053
  • Rs. 702.10 (inc GST)
    Rs.595.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

LPR6235 Mini Step-Up

LPR6235 752SMRB  Mini Step-Up 7.5 uH 1:100 Turn

LPR6253 752SMRB is a mini step up coupled inductor having a 1:100 turn ratio. LPR6235 can be used as step-up or flyback transformers in DC-DC converters or as auto-transformers. They are perfect for low voltage step-up in energy harvesting applications and have been selected by Linear Technology for the LTC3108 and LTC3109 Ultralow Voltage Step-Up Converter and Power Managers

These shielded parts are only 3.5 mm high and 6 mm square. The excellent coupling coefficient (k = 0.95) makes them ideal for use in a variety of applications.They can be used as flyback transformers and step-up pulse transformers.

The high Isat and low DCR ratings of these parts provide high efficiency and excellent current handling in a rugged, low cost design.

LPR Mini Transformers

LPR6235 Mini Transformers are designed for step-up, resonant, and flyback applications, have excellent coupling coefficient (k=0.95), making them ideal for use in a variety of applications. The LPR6235 mini transformers from Coilcraft also have high Isat and low DCR ratings that provide high efficiency and excellent current handling in a rugged, low-cost design. Improved plating of matte tin over nickel over silver removes halogens and improves solderability.

Specification

  • Inductance - Parallel : 7.5 uH
  • Maximum DC Current : 1.6 A
  • Maximum DC Resistance : 316 Ohms
  • Length : 6 mm
  • Width : 6 mm
  • Height : 3.5 mm
  • Minimum Operating Temperature : - 40 C
  • Maximum Operating Temperature : + 85 C
  • Core Material : Ferrite
  • Product : Coupled Inductors
  • Termination Style : SMD/SMT
  • Type : Miniature Shielded Coupled Inductors
  • Brand : Coilcraft
  • Product Type : Coupled Inductors
