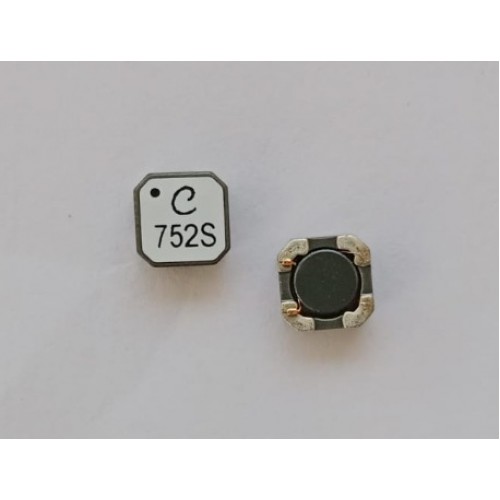

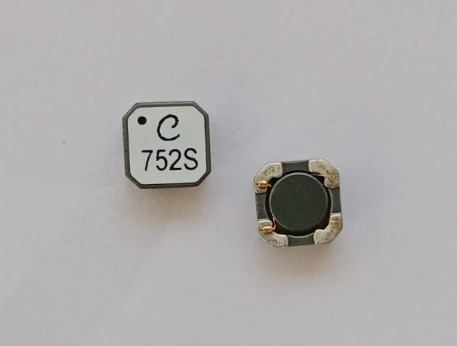

LPR6235 752 Mini Step Up

  • Stock: 10

    Availability: InStock priceValidUntil: 2026-12-17

  • Brand: Coilcraft
  • SKU: 2272 | DAC053

Availability: InStock priceValidUntil: 2026-12-17

  • Rs. 702.10 (inc GST)
    Rs.595.00 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

LPR6235 Mini Step-Up

LPR6235 Mini Step-Up Inductor 7.5uH, 1.6A, 316 Ohms, ideal for DC-DC converters.

The LPR6235 Mini Step-Up is designed for effective voltage boosting in various applications. With a 1:100 turn ratio and 7.5 uH inductance, it serves excellently in DC-DC converters and energy harvesting systems. Its compact size of 6 mm square and 3.5 mm height makes it suitable for space-constrained designs. The high saturation current of 1.6 A ensures reliable performance under load.
This coupled inductor offers a high coupling coefficient of k = 0.95, which enhances efficiency and performance. It is perfect for use in flyback and resonant applications, making it versatile in electronic projects. The low DC resistance of 316 Ohms further contributes to minimal power loss, ensuring effective energy transfer.
The LPR6235 is built with ruggedness in mind, featuring improved plating that enhances solderability. This makes it a great choice for DIY enthusiasts and professional engineers alike. Whether you are designing energy-efficient devices or working on innovative projects, the LPR6235 Mini Step-Up Coupled Inductor fits seamlessly into your plans.
At DNA, we provide the LPR6235 Mini Step-Up, a reliable choice in the Motor Driver category. Explore our range of Motor Drivers for your electronic projects. Check other Motor Driver that we have in stock.
If you're searching for specific electronic components, DNA is here to help. We can import parts that are not available and offer support for both retail and bulk orders. Explore our selection, including Hongfa Relay, Analog IC, Sensor Module, Development boards, MOSFET, and Digital IC. Contact Us

Features of LPR6235 Mini Step-Up

  • 1:100 turn ratio
  • 7.5 uH inductance
  • High saturation current of 1.6 A
  • Low DC resistance of 316 Ohms
  • Compact size of 6 mm x 6 mm x 3.5 mm

Specification of LPR6235 Mini Step-Up

  • Inductance - Parallel: 7.5 uH
  • Maximum DC Current: 1.6 A
  • Maximum DC Resistance: 316 Ohms
  • Length: 6 mm
  • Width: 6 mm
  • Height: 3.5 mm
  • Minimum Operating Temperature: -40 C
  • Maximum Operating Temperature: +85 C
  • Core Material: Ferrite

Applications of LPR6235 Mini Step-Up

  • DC-DC converters
  • Energy harvesting systems
  • Flyback transformers
  • Resonant applications
  • Pulse transformers

Package Includes

  • 1 X LPR6235 Mini Step-Up
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
