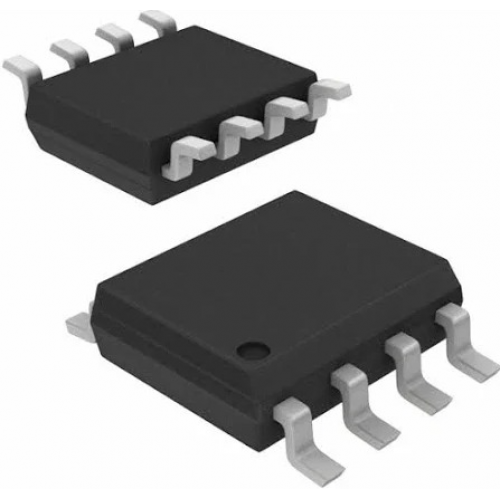

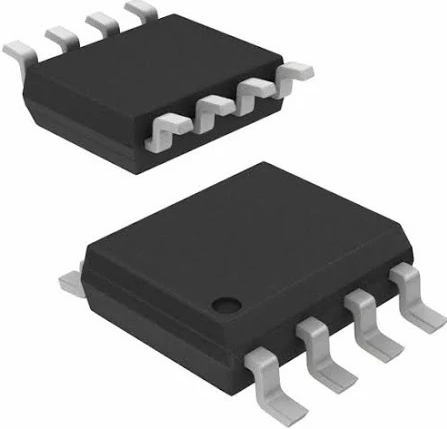

Product Images are shown for illustrative purposes only and may differ from actual product.

HCPL0630 Logic Output Optoisolator SOIC-8 SMD IC

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-12-17

  • SKU: 9571 | DAI520

Availability: NotInStock priceValidUntil: 2026-12-17

  • Rs. 152.67 (inc GST)
    Rs.129.38 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

HCPL0630 Logic Output Optoisolator SMD IC

HCPL0630 Logic Output Optoisolator with 10 Mbps data rate and 3750 Vrms isolation voltage.

The HCPL0630 Logic Output Optoisolator SMD IC is designed for high-speed digital isolation. It features an 850 nm AlGaAs LED and an integrated photodetector, providing reliable signal isolation for digital logic systems. With a typical data rate of up to 10 Mbps, this optoisolator is ideal for various applications, including microcontroller communication and switch-mode power supply feedback. The SOIC-8 package ensures easy integration into your designs, while the isolation voltage of 3750 Vrms guarantees robust performance in harsh environments.
This component is particularly beneficial for applications requiring signal isolation between different voltage levels. The HCPL0630 supports both CMOS and TTL compatible outputs, making it versatile for various electronic projects. Choose the DNA HCPL0630 for dependable performance in your electronic designs and ensure the integrity of your signals with high-speed isolation.
Explore the wide range of OptoCouplers & OptoIsolators available at DNA. The DNA HCPL0630 is perfect for your signal isolation needs. Check other OptoCouplers & OptoIsolators that we have in stock.
If you are looking for specific electronic components in India, DNA can help. We can assist you in finding parts or even import them if they are not available. We support retail and bulk orders for items like SMPS, DC to DC Converter IC, Sensor Module, and more. Contact Us.

Features of HCPL0630 Logic Output Optoisolator SMD IC

  • High-speed digital output optocoupler
  • Typical data rate up to 10 Mbps
  • SOIC-8 surface-mount package
  • CMOS and TTL compatible outputs
  • Isolation voltage of 3750 Vrms

Specification of HCPL0630 Logic Output Optoisolator SMD IC

  • Part Number: HCPL0630
  • Package: SOIC-8 SMD
  • Isolation Voltage: 3750 Vrms
  • Data Rate: 10 Mbps (typical)
  • Operating Voltage: 4.5V to 5.5V

Applications of HCPL0630 Logic Output Optoisolator SMD IC

  • Digital logic signal isolation
  • Microcontroller to logic level communication
  • Switch-mode power supply feedback
  • Data communication between voltage domains

Related Links for HCPL0630 Logic Output Optoisolator SMD IC

Package Includes

  • 1 X HCPL0630 Logic Output Optoisolator SMD IC
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
