Product Images are shown for illustrative purposes only and may differ from actual product.

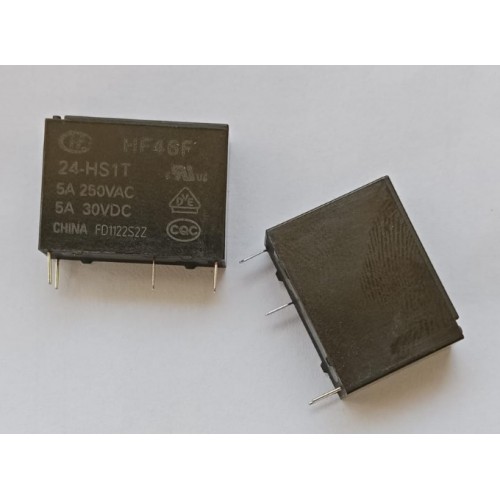

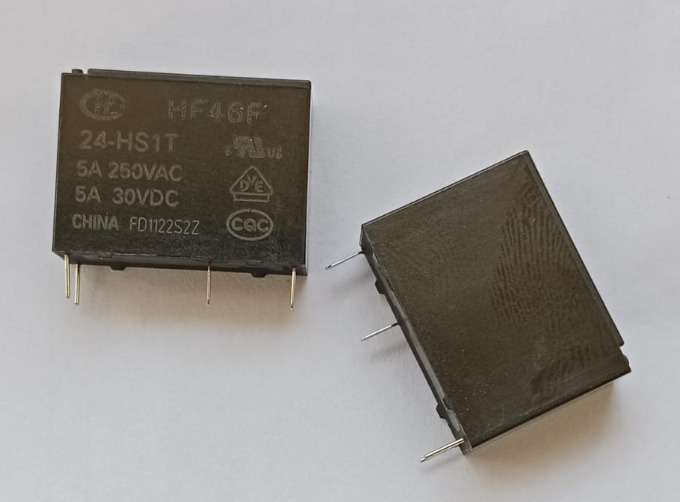

Hongfa HF46F/24-HS1T Subminiature Intermediate Power Relay

  • Stock: 10

    Availability: InStock priceValidUntil: 2026-12-14

  • Brand: Hongfa
  • SKU: 7961 | DAH695

Availability: InStock priceValidUntil: 2026-12-14

  • Rs. 140.42 (inc GST)
    Rs.119.00 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Hongfa HF46F/24-HS1T Subminiature Intermediate Power Relay

Hongfa HF46F/24-HS1T relay with a 24 VDC coil, one Form A contact, PCB termination and a 3 A or 5 A resistive-load contact rating.

Hongfa HF46F/24-HS1T is a subminiature intermediate power relay with a 24 VDC coil. It switches one Form A contact. Its contact rating is 3 A or 5 A for resistive loads at 250 VAC or 30 VDC.
The plastic-sealed construction encloses the relay, while PCB termination supports direct board mounting. The AgSnO2 contact material and compact 20.5 × 15.3 × 7.0 mm outline suit designs that need a board-mounted switching part with a small footprint. Its coil uses about 200 mW, which helps limit control-side power use.
DNA supplies Hongfa Relay products for electronics buyers in India. Browse this relay and other Hongfa Relay parts for your project or stock needs. Check other Hongfa Relay that we have in stock
For Indian electronics buyers, DNA can help find hard-to-source parts and provide import support. We support both retail and bulk orders. You can also ask about MOSFETs, diodes, resistors and Hongfa Relay products. Contact Us

Features of Hongfa HF46F/24-HS1T Subminiature Intermediate Power Relay

  • Single Form A contact switches one circuit path
  • Plastic-sealed construction encloses the relay
  • PCB termination supports direct board mounting
  • AgSnO2 contact material
  • Subminiature form supports compact board layouts

Specifications of Hongfa HF46F/24-HS1T Subminiature Intermediate Power Relay

  • Coil nominal voltage: 24 VDC
  • Contact rating: 3 A or 5 A at 250 VAC/30 VDC for resistive loads
  • Maximum switching voltage: 277 VAC / 30 VDC
  • Maximum switching power: 1385 VA / 150 W
  • Dielectric strength: 4000 VAC between coil and contacts, 1000 VAC between open contacts for 1 minute
  • Ambient temperature: -40°C to 85°C
  • Insulation standard: Class F
  • Outline dimensions: 20.5 × 15.3 × 7.0 mm

Related Links for Hongfa HF46F/24-HS1T Subminiature Intermediate Power Relay

Package Includes

  • 1 X Hongfa HF46F/24-HS1T Subminiature Intermediate Power Relay
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
